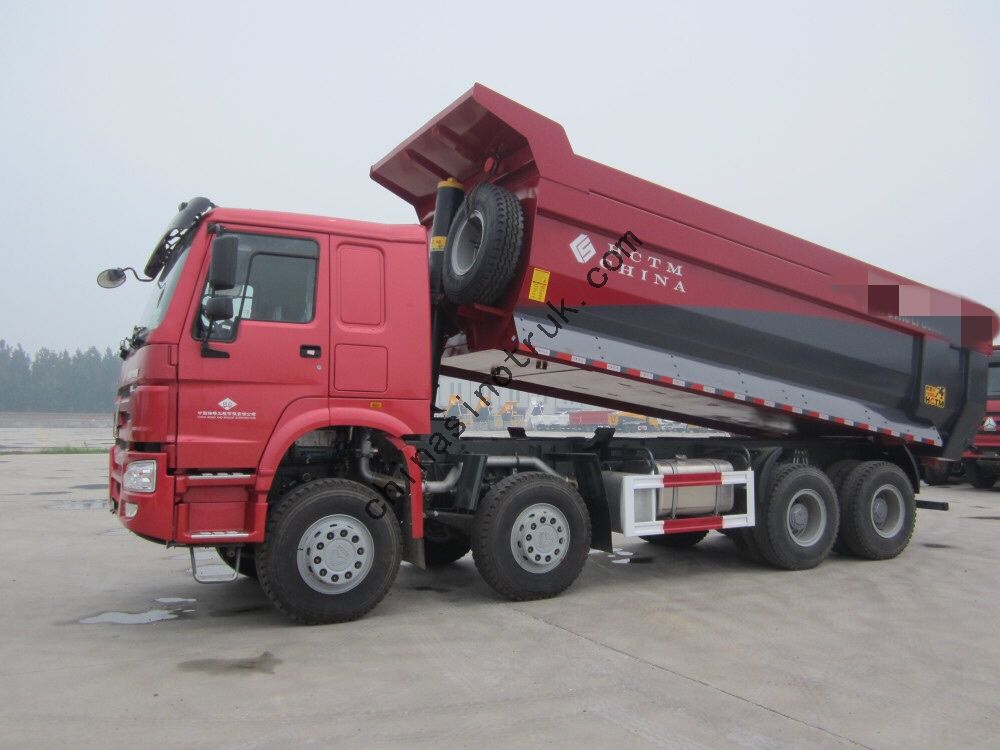

SINOTRUK HOWO 8X4 U shape Dump Truck

Supply Ability: 300 Units per Month Packaging Details: naked and waxing packing,shipment by roro or bulk vessel Port: Main port in China Delivery Time:40 days after 30% deposit
Request a Quote
没有此类产品
Product description
Engine
Chassis model
Mixing capacity

Overview

Product Name: Tipper Dump Truck

Model: ZZ3317N3567W

Drive Type: LHD/RHD 8X4 Emission Standard: Euro 2

Engine: WD615.47, 371HP

Cargo Body: 7300*2300*1500mm

Loading Capacity: 40-60tons


Supply Ability

Supply Ability: 300 Units per Month


Packaging & Delivery
Packaging Details: naked and waxing packing,shipment by roro or bulk vessel
Port: Main port in China
Delivery Time:40 days after 30% deposit



Product Description

This type truck chassis is the famouce brand of CNHTC group in abroad marketing. it also have a large exporting quantity in recently years, and make a big effort for local infrastructure construction.This type truck need more wide road for the lenght of the whole truck is longer than 6X4 and 4X2 type truck. full expression of heavy duty truck concept. Delicate design, excellent technology, which have the advantages of Comfort, safety, reliability, electronic level geared to international level. Low fuel consumption.

It is super art in domestic and abroad auto field, full expression of heavy duty truck concept. Delicate design, excellent technology, which will dazzle you as groundbreaking works


Specification

SPECIFICATION OF HOWO 8X4 DUMP TRUCK

Body

Carriage Internal Dimensions(mm)

7300x2300x1500

Cubage (m3)

25

Steel thickness of Carriage(mm)

Floor:10mm/Side:8mm

Floor:8mm/Side:6mm

Steel

Q235/Q345/700/NM450

Hydraulic Lift of Carriage

Front Lift

Dimensionmm

Dimensions(mm)

Length(mm)

10845

Width(mm)

2550

Height(mm)

3550

 Wheel base (mm)

1800+3500+1350

Performance

Maximum driving speed (km/h)

75

Fuel consumption  (1/100 km)

-

Cab

 Model

SINOTRUK HW76 Lengthen cab


single bunk,new type seat,adjustable steering wheel,EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner

Engine

Model

WD615.47Euro 2

Type

6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection

Horsepower

371

Maximum output Kw/r/min

273/2200

Maximum torque N.m/r/min

1460/1300-1600

Bore x Stroke

126x130mm

Valve

2

Displacement

9.726L

Make by SINOTRUCK (CNHTC), Euro II emission standard

Transmission

SINOTRUK HW19710 transmission ,10 forward and 2 reverse

Clutch

SINOTRUK 430 diaphragm-spring clutch,hydraulically operating with air assistance

Steering

ZF8118 Steering Gear Box ,hydraulic steering with power assistance.(Left hand driving)

Front Axle

SINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes.

Rear Axles

SINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:4.8;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.

Brake System

Service brake:dual circuit compressed air brake

Parking brake (emergency brake):spring energy,compressed air operating on rear wheels

Wheels & Tyres

Rims:8.5-20,10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire.

Optional: 12R22.5/11.00R20/12.00R20/13R22.5/12.00R24

Electrics

Operating voltage:24V,negative grounded

Starter:24V,7.5 Kw

Alternator:3-phase,28V,1500 W

Batteries:2x12 V,165 Ah

horn,headlamps,fog lights,brake lights,indicators and reverse light

Oil Tank

Square type-300L Aluminum alloy fuel tank


Applications

sinotruk



Competitive Advantage:

1)Several kinds of cargo body structure , make it light weight , high rigidity , high loading capacity.

2)Adopt the high strength steel, make it has a long service life.

3)The imported hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.

4)Excellant apperance of cabin, safety, reliable.

5)Lower fuel consumption.

6)Strong enough engine.

7)With all kinds of truck model, which can fulfil your requirements.

8)the key parts adopt the world's top technology products.

9)based on strong technical support and top level technology make the trucks with high quality and more reliable.

10)Competive price, cost-effective.

11)Quick and efficient spare parts supply bring you more convenient.

12)fast delivery time, we can arange production according to your needs exactly and quickly.

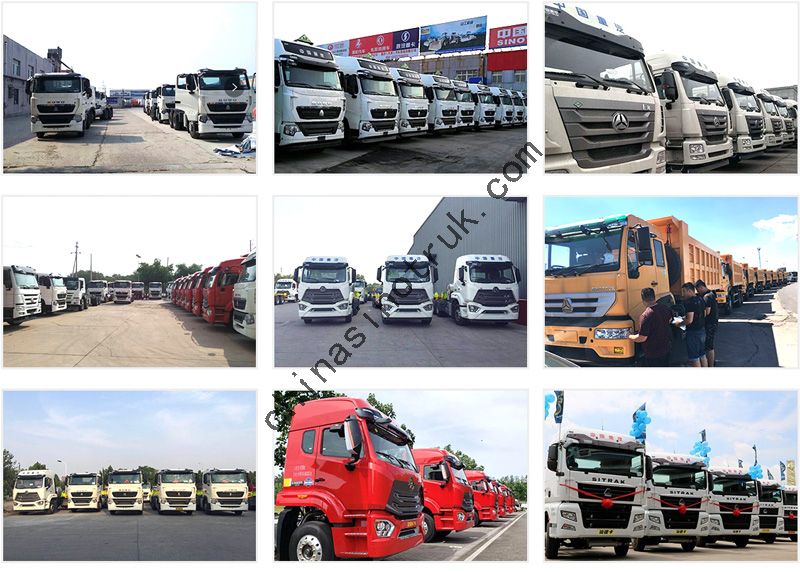

Batch export of vehicles

sinotruk

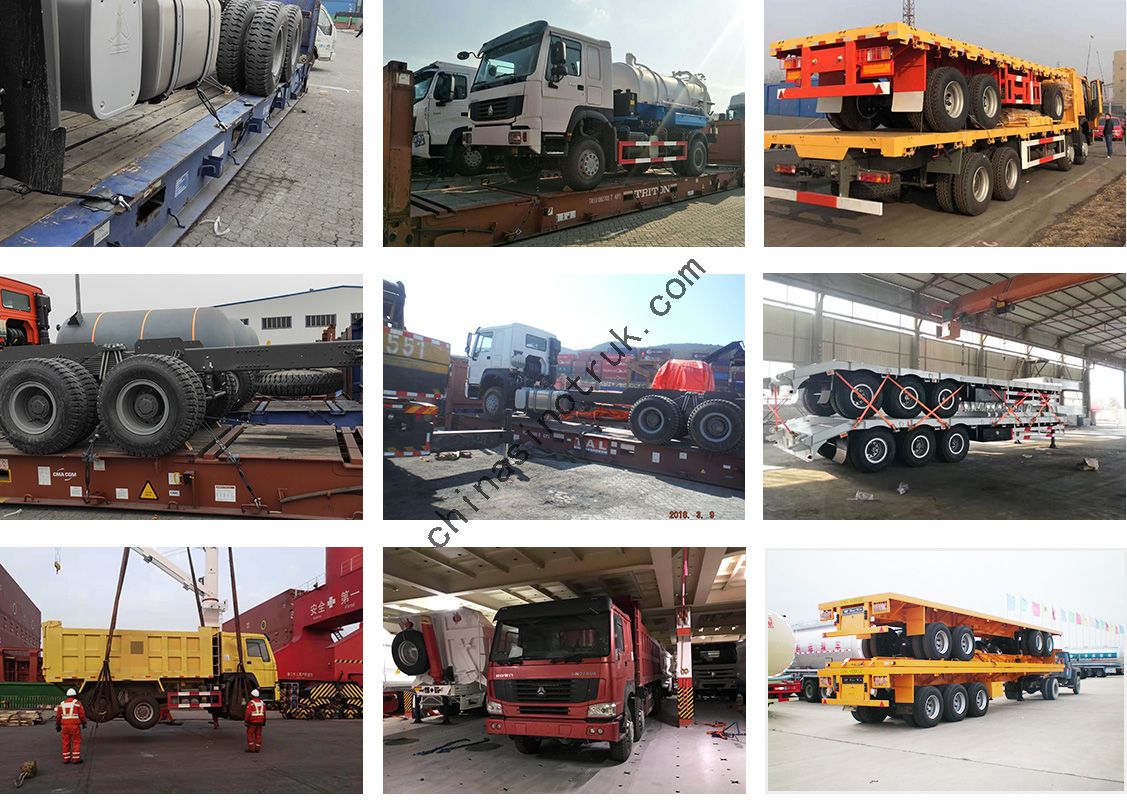

Ocean Shipping

sinotruk
