Aerial Working Truck Aerial working truck is made up of special automobile chassis, lifting mechanism, tracheal pipeline system, electric control hydraulice quipment parts. Can lfting heavy objects. The leg is alone separate and adjustable, keep the veh
Request a Quote
没有此类产品
Product description
Engine
Chassis model
Mixing capacity

Overview

Quick Details
Transmission Type:ManualCondition:NewEmission Standard:Euro 2
Fuel Type:Diesel

  • Dimensions (L x W x H) (mm):

7400X1980X3100

  • Place of Origin:

China (Mainland)
Brand Name:sinotrukModel Number:ZZ1167Truck type:4X2
Supply Ability
Supply Ability: 100 Unit/Units per Month
Packaging & Delivery
Packaging Details: Nude or Waxing in Roro or bulk ship
Port: china main port

SINOTRUK HOWO Aerial Working Truck-18m

Product Description
(1) HOWO 4x2 Aerial Working Truck
(2) 4x2 Driving model
(3) Horse Power:116HP
(4) Euro II emission
(5) 300L Fuel tank
(6) Max working high:18m
Specification
ModelManufacturer
Working Platform
Max. platform capacity230 Kg (2 persons)
Internal size of platform1100x600x1100 mm
Max. Working Height18 m
Max platform height15.2 m
Max. Working radius7.7 m
Hook
Max lifting capacity1000 Kg
Max Lifting height8.63 m
Working Boom
Max. Raising angle of upper boom70
Max. Raising angle of lower boom70
Max. Raising angle of jib90
Boom rack ration angle360
Outrigger
Vertical span3200 mm
Horizontal span3600 mm

Chassis

Cabin2080 Standard cab, with two seats
Wheelbase3360 mm
Overall dimensions(LxWxH)6422*1990*2995mm
Tare Weight5450kg
EngineYUNNEI , Euro II emission,116 HP
ClutchReinforced diaphragm clutch, diameter 430mm
Gear boxWLY6T46, 6 forwards & 1reverse
BreaksService brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
Steering Gearpower steering, hydraulic steering with power assistance
Tire  8.25R16 All steel radial tire, 1pc including 1 spare tire

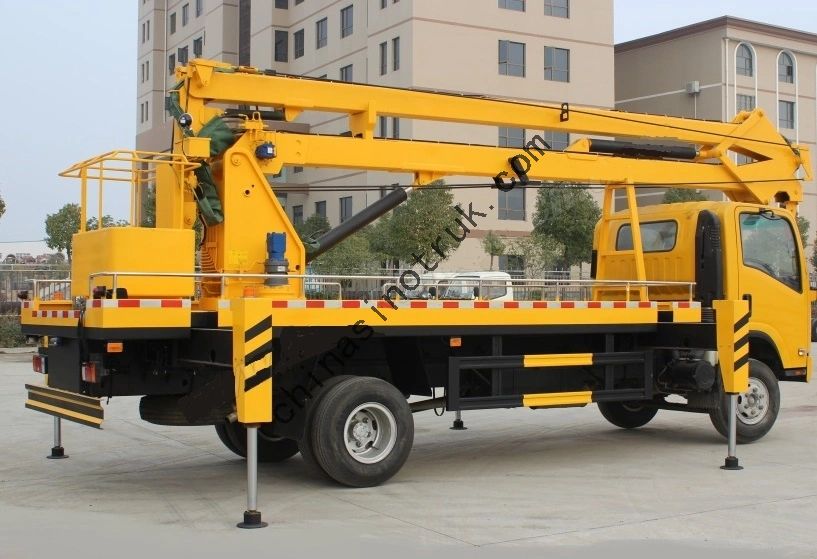

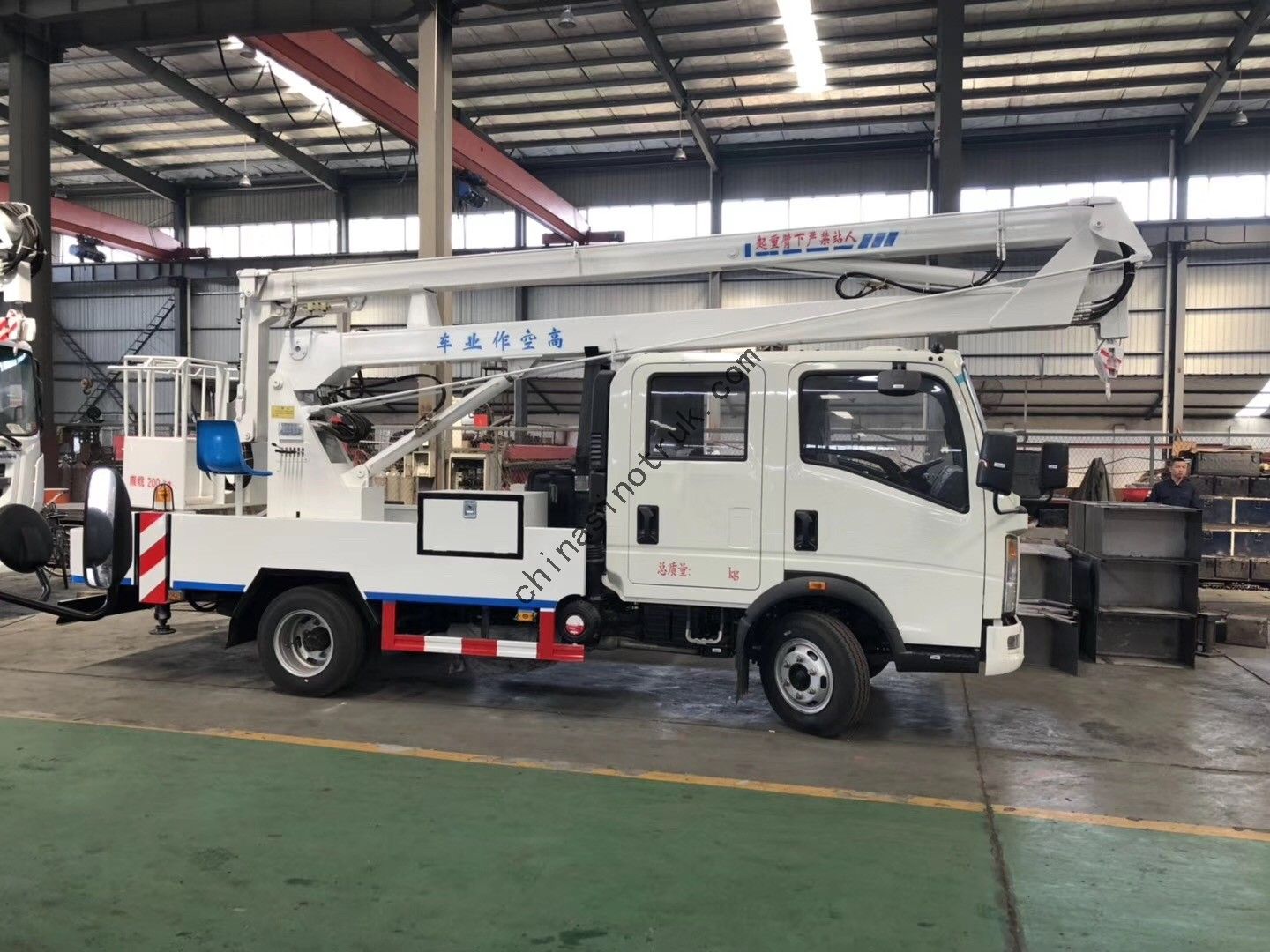

Picture Shows



Advantages

  • Durable SINOTRUK chassis, enjoy highly reputation in the world.

  • Electro-hydraulic proportional control, stepless throttle

  • Control box at both turret and platform

  • Imported key components, higher reliability, excellent property and long life span.

  • Large outrigger span, outrigger can be operate individually

  • Emergency descent power, Safety interlock

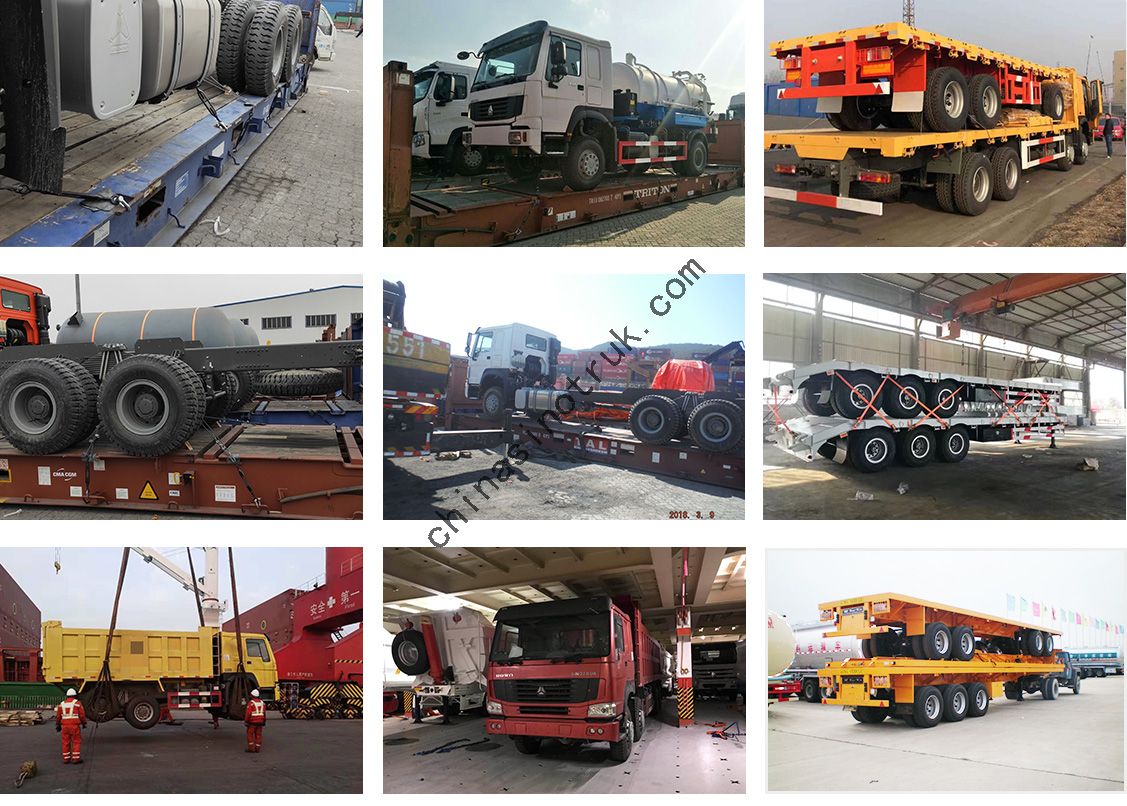

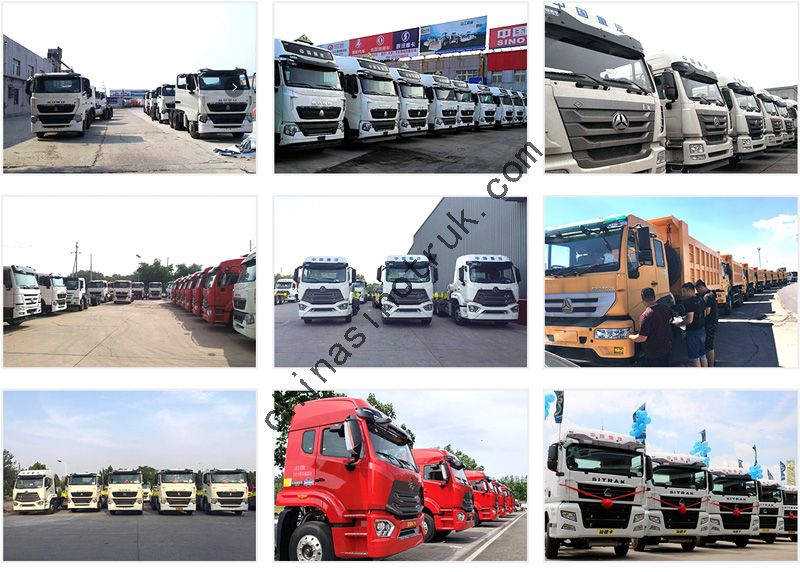

Batch export of vehicles

sinotruk

Ocean Shipping

sinotruk


IN NUDEChina main port
