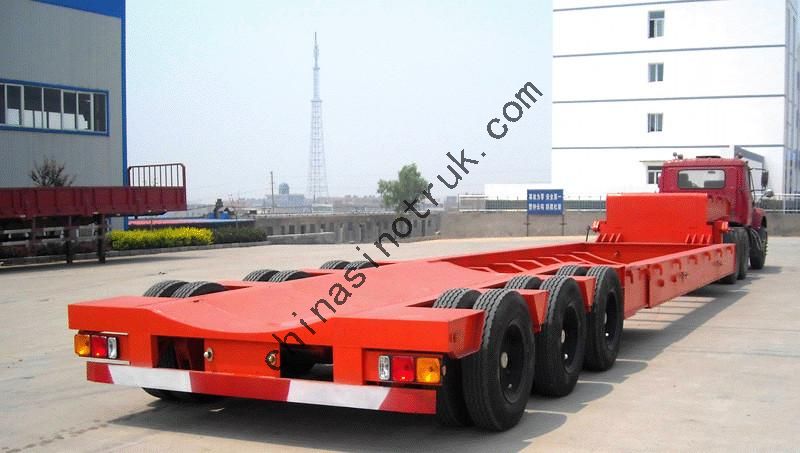

Extendable Low Bed Semi Trailer

Extendable low bed trailer is suitable for the transportation of the following goods and situation: Wind power plants (tower segments, rotor or turbine blades) Structural elements (steel and concrete elements) Roof constructions Bridge elements Other bulk
Request a Quote
没有此类产品
Product description
Engine
Chassis model
Mixing capacity

Extendable /Widner Lowbed Semi Trailer


The trailer has the function of widner. It designs according to its basic width 2500mm with extending to 3500mm. The height of platform keeps under 1000mm, which can suits different cargo of varied height and width.

It also has the function of extendable, which always satisfy the certain long materials.


Specification

Item

Dimensions

Overall

About 12500x2500x1500 (mm) (LxWxH) extend to 16-17m or longer

Final dimension depends on your request.

Payload

60000kg

Chassis

Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 20mm,width 140mm; Middle Flange 11.5mm; Bottom Flange 20mm,width 140mm.

Axle

3 axles/ Loading capacity each axle: 13T/16T/20T

Brand Name: FUWA/HUAJIN/BPW/L1

Suspension

Mechanical suspension or air suspension optional upon choice.

Leaf Spring

10-piece leaf spring.

Floor

3~8mm checker plate.

Ramp

Mechanical spring ramp or hydraulic lifting ramp-Optional upon requirement.

King Pin

JOST brand 2 Bolt-in King Pin.

Landing Gear

JOST brand Two-speed, manual operating, heavy duty landing gear.

Wheel Rim

6.5-20 / 7.5-20 / 8.00-20 / 8.5-20 or etc

Tyre

8.25R20 / 10.00R20 / 11.00R20 / 11R22.5 / 235/70 R17.5 / 315/80 R22.5 or etc

Spare Tire

One set of spare tire including a carrier.

Braking System

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint.

Accessories

One standard tool box.

Side bracket is an option(for increase overall width), removable and swinging
