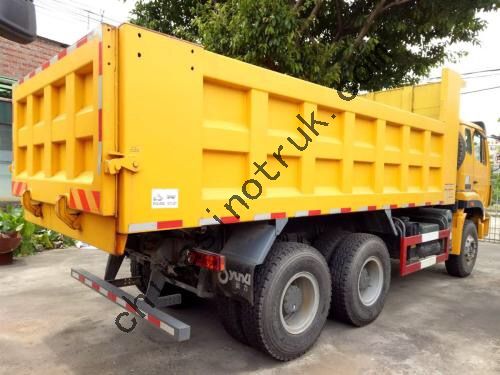

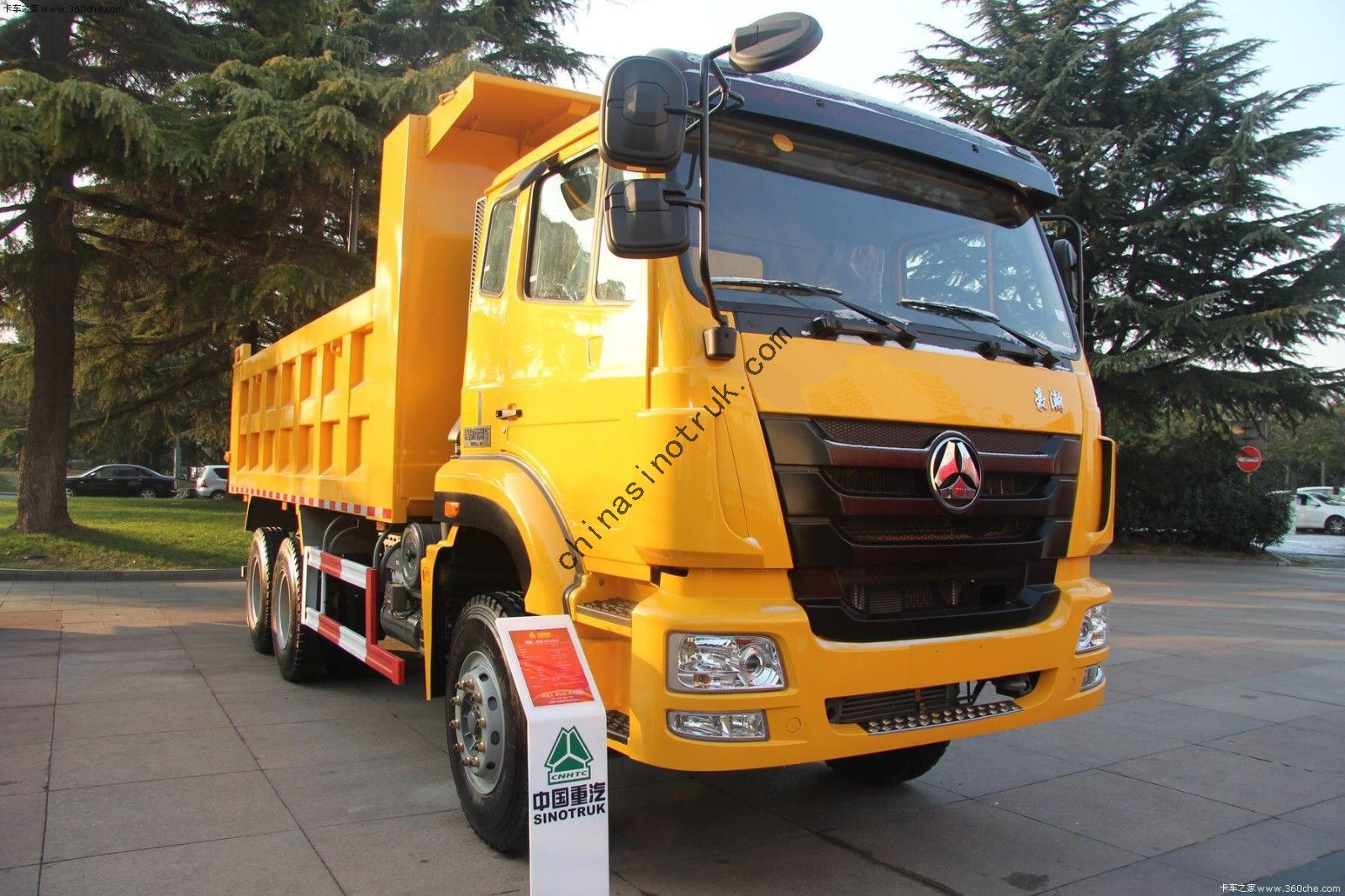

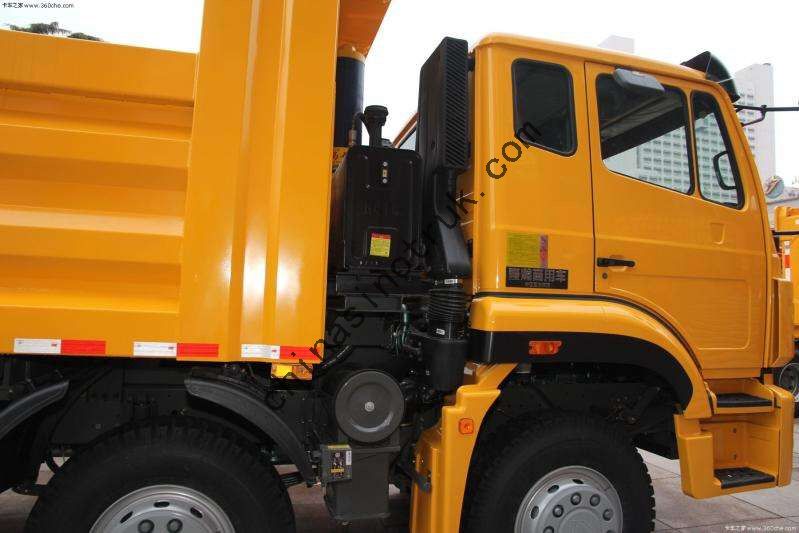

HOHAN 6X4 Dump Truck
HOHAN 64 Dump TRUCK
Technical Specifications of HOHAN 6x4 Dump Truck
Chassis Make | Sinotruk Hohan | ||||
Vehicle type | Dump truck (tipper truck) | ||||
Manufacturer | Sinotruk Hubei Huawin Special Vehicle Co., Ltd. | ||||
Country | China | ||||
Manufacturer's location | Suizhou, Hubei Province, China. | ||||
Engine | |||||
# | Model | Displacement | Power | Engine Manufacturer | |
1 | D10.31 | 9726ml | 228 kW (310 hp) | China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) | |
2 | D10.34 | 9726ml | 249 kW (339 hp) | China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) | |
3 | D10.38 | 9726ml | 276 kW (376 hp) | China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) | |
4 | WD615.69 | 9726ml | 247 kW (336 hp) | China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) | |
5 | WD615.47 | 9726ml | 274 kW (371 hp) | China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) | |
General Engine Specifications | |||||
Fuel | Diesel fuel | ||||
Emission standards | Euro 2/3/4/5 | ||||
Chassis Specifications | |||||
Cabin | Model: H16 Germany BENZ Technology, extended cab with one sleeper (berth), air-conditioner, damping comfortable seat, dash board with LCD, MP3, safety belts, curtain, electrical window regulator, adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber devices etc. | ||||
Cab seating capacity | 2 | ||||
Clutch | 430diaphragm spring clutch, Hydraulic control air assister | ||||
Transmission | SINOTRUK HW series 10 gears Transmission, main and auxiliary transmission structure, main transmission with double counter shaft , auxiliary transmission with planetary reduction. Standard is HW19710, HW19710T with synchronizer is optional. | ||||
Front Axle | HF9, rated load of 9t, disc-type or drum-type; | ||||
Rear Drive Axle | HC16 double reduction (speed ratio 4.42;4.8; 5.73); | ||||
Suspension | Front and rear leaf spring suspension +shock absorber +transverse stabilizer | ||||
Leaf springs | 10 / -; 10 / 12 | ||||
Steering System | ZF8098 steering gear , ZF steering oil pump , system pressure 18MPa | ||||
Braking System | Service brake : dual-circuit air pressure brake : spring storage energy without air ; auxiliary brake Engine exhaust braking. | ||||
Electrical System | CAN bus control, voltage : 24V ;generator :2240W starter 7.5kW ; battery : 12V/165Ah, 2 pieces | ||||
Tyre | 12.00R20 ; 11.00R20, 315/80r22.5 are optional | ||||
Tank Volume L | 300L standard | ||||
Dump cargo box Specifications | |||||
Vehicle Model | ZZ3255N3646 | ZZ3255N3846 | ZZ3255N4046 | ||
Driving type | 6x4 LHD/RHD | ||||
Wheel Base | 3600+1350 | 3800+1350 | 4000+1350 | ||
Recommend Cargo box dimension | 5.4/5.6*2.3*1.5m | 5.6/5.8*2.3*1.5m | 5.8/6.0*2.3*1.5m | ||
Overall size | 8150/8350x2496x3450 | 8350/8550x2496x3450 | 8550/8750x2496x3450 | ||
Tall Mass(vehicle+cargo) | 30~50Ton | ||||
Carry distance | Short Distance | ||||
Economic speed | 44~55Km/h | ||||
