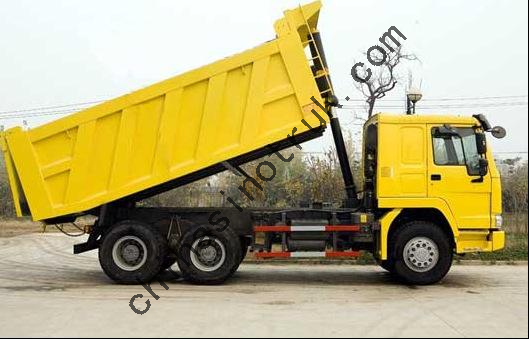

SINOTRUK HOWO 6X4 Dump Truck Front Lifting
Request a Quote
Product description
Engine
Chassis model
Mixing capacity
Overview
| Quick Details | |||||
| Drive Wheel: | 6x4 | Capacity (Load): | 31 - 40t | Horsepower: | 351 - 450hp |
| Condition: | New | Transmission Type: | Manual | Emission Standard: | Euro 2 |
| Fuel Type: | Diesel | Engine Capacity: | > 8L | Gross Vehicle Weight: | 25 |
| Place of Origin: | Hubei, China (Mainland) | Brand Name: | SINOTRUK | Dimensions (L x W x H) (mm): | 8500x2500x3400mm |
| Engine power: | 371HP | Displacement: | 9.726L | Wheels number: | 10 wheels |
| Transmission: | HW19710 | Front axle loading capacity: | 9000kg | Drive axles loading capacity: | 16000kg*2 |
| Type: | 12R22.5 | Spare tyre: | with one spare tyre | cargo body size: | 5600x2300x1500mm |
| Color: | Buyer's Request | ||||
Supply Ability
Supply Ability: 300 Unit/Units per Month
Packaging & Delivery
Packaging Details: naked packing,shipment by roro or bulk vessel
Port: main port in China
Lead Time:
Packaging Details: naked packing,shipment by roro or bulk vessel
Port: main port in China
Lead Time:
| Quantity(Units) | 1 - 100 | >100 |
| Est. Time(day) | 35 | To be negotiated |
Product Description
This type truck is the famouce brand of CNHTC group in abroad marketing. it also have a large exporting quantity in recently years, and make a big effort for local infrastructure construction.This type truck need more wide road for the lenght of the whole truck is longer than 6X4 and 4X2 type truck. full expression of heavy duty truck concept. Delicate design, excellent technology, which have the advantages of Comfort, safety, reliability, electronic level geared to international level. Low fuel consumption.
It is super art in domestic and abroad auto field, full expression of heavy duty truck concept. Delicate design, excellent technology, which will dazzle you as groundbreaking works
Be comprehensive with Euro2 and Euro3 engine equipped.
Driving type: 42, 44 62, 66 ,64, 84 and 104 etc.
Power range: 266PS - 420PS.HOWO Leader In Heavy Duty Truck Industry Driving King On The Road
New HOWO dump truck, High Quality , More Lighter,
High Level Comfortable:Cabin 4 point full -floating air suspension ,adjustable steering wheel with various heightsand angles.air suspension seat, Cruise Constant Speed System,MINI Player .electrical control glass and mirror,ATM Gearbox bunk with AC.
Top configration: Discal brakes +EVB,ABS+ASR+EBL+TPM,More Powerful electronic management system.
Specification
Specification
| Model | ZZ3257N3847A |
| Drive Type | 64 |
| Engine | WD615.47 , 371HP( Euro II) |
| 6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine | |
| Displacement : 9.726L | |
| Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat) |
| Transmission | HW19710(10 forwards & 2 reverses) |
| Front Axle | 1HF9 ( 9 Tons) |
| Driving Axle | HC16, 16Tons*2 |
| Steering | ZF8118 hydraulic steering with power assistance.(ZF8098 for RHD) |
| Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
| Rim/ Tire | 12R22.5/11.00R20/12.00R20/13R22.5 |
| Wheel base | 3800+1350(mm) |
| Overall dimension | 847524963450(mm) |
| Cargo body | 580023001500(mm),Bottom:8mm, Side:6mm |
| The curb weight | 12500(Kg) |
| Gross weight | 25000 kg |
| Max. speed | 85km/h |
| Color | White, red, green, golden and so on. |

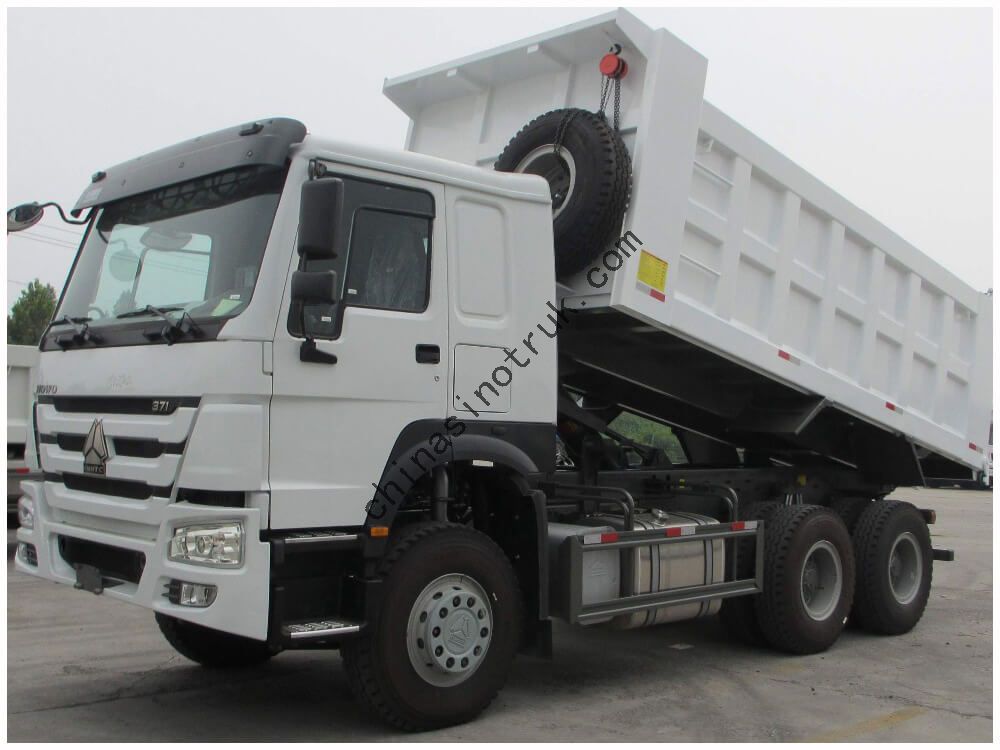

Picture Shows

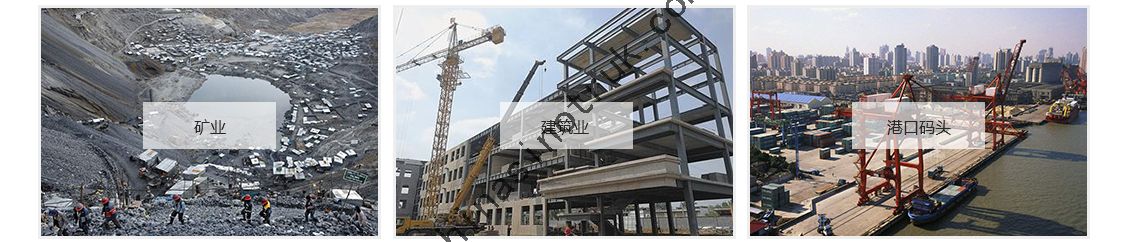

Applications
Competitive Advantage:
1)severall kinds of cargo body structure , make it light weight , high rigidity , high loading capacity.2)adopt the high strength steel, make it has a long service life.
3)The imported hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
4)excellant apperance of cabin, safety, reliable.
5)lower fuel consumption.
6) strong enough engine.
7)with all kinds of truck model, which can fulfil your requirements.
8)the key parts adopt the world's top technology products.
9)based on strong technical support and top level technology make the trucks with high quality and more reliable.
10)competive price, cost-effective.
11)quick and efficient spare parts supply bring you more convenient.
12)fast delivery time, we can arange production according to your needs exactly and quickly.

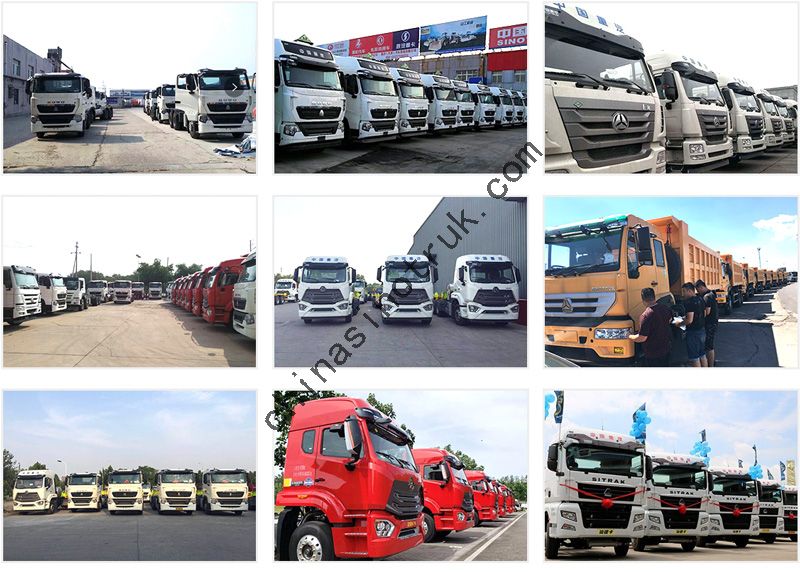

Batch export of vehicles

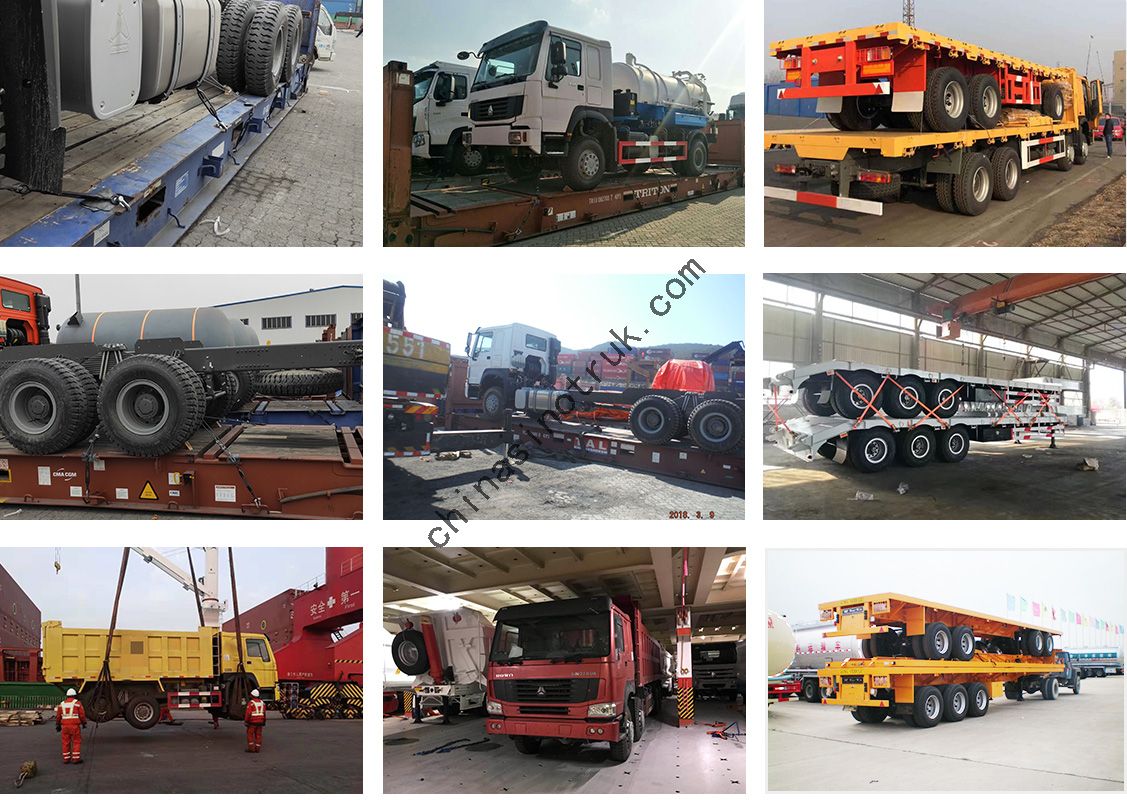

Ocean Shipping
