SINOTRUK HOWO 6X4 U Shape Dump Truck



SINOTRUK HOWO series dump truck has been widely used all over the world, and has been realized as the most mature dump truck in SINOTRUKs truck family. Equipped with reliable SINOTRUK engine and gear box, plus stable hydraulic system, it has gained enormous satisfaction from users through years.

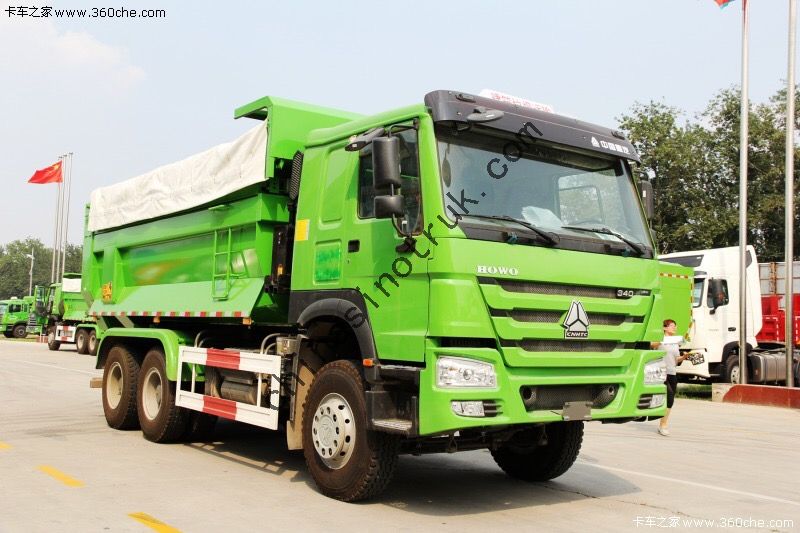

ͼ (17).JPG

High efficient and comfortable ergonomic spaced cabin

The high reliability suspension

Specification

 SPECIFICATION

Engine

Make: SINOTRUK

Disel:4-Stroke direct injection diesel engine

Engine model: Euro II, WD615.47

6-cylinder in-line with water cooling, turbo-charging and intercooling

Maximum output: 371hp at 2000 rpm

Maximum torque: 1500Nm at 1100-1600 rpm

Displacement:9.726L

Bore:126mm

Stroke:130mm

Compression ratio:17.5:1

Twin cylinder air compressor

Clutch

Single-plate dry coil-spring clutch,

diameter 430mm, hydraulically operating with air assistance.

Transmission

HW19710, 10 forward, 2 reverse, manual.
Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.8, 1.34, 1. R13.91, R3.18.

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Front Axle

Steering with double T-cross section beam

Rear Axles

Pressed axle housing, central single reduction with planetary wheel reduction
 and with differential lock

Chassis

Frame: U-profile parallel ladder frame with section of 300808mm and
reinforced subframe, all cold riveted cross members
Aluminum fuel tank: 300 L capacity with locking fuel cap, fitted to the off side of the chassis

Steering

ZF power steering, hydraulic steering with power assistance.

Braking System

Service brake: dual circuit compressed air brake
Parking brake(emergency brake):spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake
ABS is optional.

Tyres

12R22.5/11.00R20/12.00R20/13R22.5/12.00R24

Cab

HW76 Cab, one berth, right hand drive, air condition, all steel forward control,
 55hydraulically tiltable to the front, 2arm windscreen wiper system with three speeds, laminated windscreen with casted in radio aerial, hydraulically damped adjustable drivers seat and rigid adjustable codrivers seat, with heating and ventilating system, exterior sun visor, adjustable roof flap, stereo radio/cassette recorder, safety belts,adjustable steering wheel, air horn, with 4point support fully floating suspension + shock absorbers

Electrical System

Operating voltage:24V, negative grounded
Starter:24V.7.5Kw
Alternator:3-phase,28V,1500W
Batteries:2*12V,165Ah/180Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights,
indicators and reverse light, backing alarm

Dimensions

(mm)

Wheel base                                                        3825+1350
Front wheel track                                                2022
Rear wheel track                                                 1830
Front overhang                                                   1500
Rear overhang                                                    1870
Approach angle()                                               20
Departure angel()                                               24
Overall length                                                      8545
Overall width                                                       2500
Overall height                                                      3450

Cargo box

Dimension                                                   5800 x 2300 x 1500mm
Lifting type                                                   front lifting, rear tipping

Lifting cylinder                                                    HYVA Brand

Weight in kg

Dead weight                                                     12300
Front axle loading capacity                              9000
Rear axle loading capacity                        16000*2
double axle

Performance

Maximum driving speed(km/h)                           80


The benefit of the U shape dump body

The U shape dump body or half-round dump body is payload-optimized through many innovative solutions. In the half-round shape, the bulk material flows off optimally. Due to half-octagonal construction of the body and sloped front wall, the unloaded material does not adhere in the corners of the body. The half-round dump body design also can center of the bulk material and provide good driving characteristics.

Our rear dump truck combine a large transport volume with optimised external dimensions achieve a largest possible payload at a low tare weight.

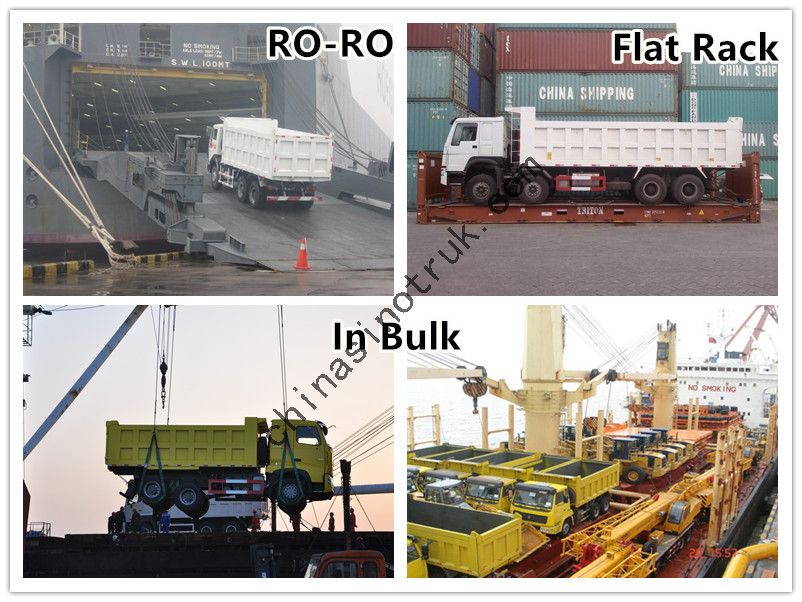

Shippment

Nude Packing or Waxing. The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. We would be taken measures against moisture, shocks and rust according to the special needs of the commodity.
