8X4 Dump Truck

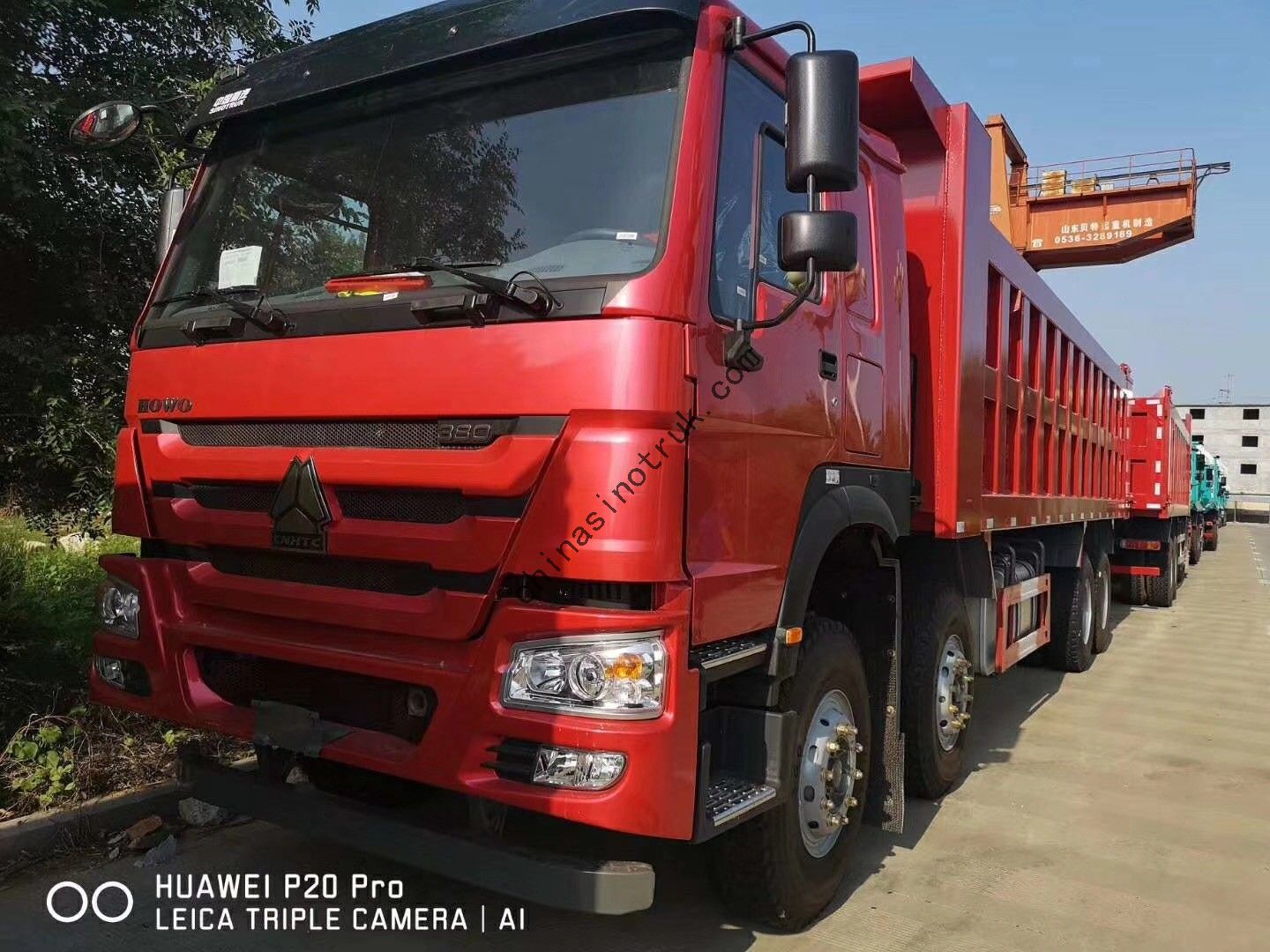

SINOTRUK HOWO 8X4 DUMP TRUCK WITH BIG LOADING CAPACITY
Technical Specifications
Vehicle Overview
Make | Sinotruk Huawin | ||||||
Vehicle model | SGZ3310ZZ3W46 | ||||||
Vehicle type | Dump truck (tipper truck) | ||||||
Manufacturer | Sinotruk Hubei Huawin Special Vehicle Co., Ltd. | ||||||
Country | China | ||||||
Manufacturer's location | Suizhou, Hubei Province, China. | ||||||
Vehicle chassis | ZZ3317N4667 | ||||||
# | Engine Model | Engine Displacement | Engine Power | Engine Manufacturer | Emission | ||
1 | WD615.69 | 9726 cc | 247 kw (336 hp) | China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) | Euro 2 | ||
2 | WD615.47 | 9726 cc | 273 kw (371 hp) | China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) | Euro 2 | ||
3 | D12.42-20 | 11596cc | 309 kw (420hp) | China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) | Euro 2 | ||
4 | D10.34-40 | 9726 cc | 249 kw (340 hp) | China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) | Euro 4 | ||
5 | D10.38-40 | 9726 cc | 276 kw (380 hp) | China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) | Euro 4 | ||
6 | D12.42-40 | 11596 cc | 309 kw (420 hp) | China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) | Euro 4 | ||
General Engine Specifications | ||
Fuel | diesel fuel | |
Diesel 4-stroke diesel engine 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
Environmental standards compliance | Euro 2/3/4/5 | |
Overall Dimensions | ||
Overall length (mm) | 11150 | |
Overall width (mm) | 2500 | |
Overall height (mm) | 3450 | |
Cargo Body Dimensions | ||
Cargo body length (mm) | 8200 | |
Cargo body width (mm) | 1500/1800 or customized | |
Cargo body height (mm) | 2300 | |
Weights | ||
Curb weight of the Chinese dump truck (kg) | 16910 | |
Axle load distribution (kg) | 6500/7000/17500? (tandem axle) | |
Wheel Base and Track | ||
Wheelbase (mm) | 1800+4600+1350 | |
Front track (mm) | 2022/2022 | |
Rear track (mm) | 1830/1830 | |
Front and Rear Overhang | ||
Front overhang (mm) | 1500 | |
Rear overhang (mm) | 1900 | |
Angle of Approach and Departure | ||
Angle of approach (deg.) | 19 | |
Angle of departure (deg.) | 24 | |
Tires and Wheels | ||
Number of axles | 4 | |
Number of tires | 12+1 | |
Tires dimension | 11.00R20, 12.00R20 18PR, 12.00R24, 12R22.5, 315/8022.5,13R22.5 or optional | |
Other Specification | ||
Max. speed | 80 | |
Number of axles | 4 | |
Number of tires | 12+1 | |
Tires dimension | 11.00R20, 12.00R20 18PR, 12.00R24, 12R22.5, 315/8022.5,13R22.5 or optional | |
Cab seating capacity | 2 | |
Steering | ZF power steering, model ZF8118, hydraulic steering with power assistance | |
Transmission | HW19710, 10F & 2R, with PTO Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) | |
Steel Axle | HF9, 2x9000 KGS Steering with double T-cross section beam | |
Driving Axle | HC16, 2x16000 KGS Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. Ratio:5.73, 4.8 is optional. | |
Chassis | Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced sub-frame all cold riveted cross members | |
Brake | Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake ABS:optional | |
Leaf springs numbers | Front/Rear: 11 / 11 / 12 Front steering axle suspension:11 peaces semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer Rear driving axle suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer | |
Fuel tank | Aluminum ally tank 300L or 400L | |
