Bulk Cement Transport Truck
Request a Quote
Product description
Engine
Chassis model
Mixing capacity
Overview
| Quick Details | |||||
| Place of Origin: | Hubei, China (Mainland) | Brand Name: | HOWO A7 | Model Number: | ZZ1317N4667N1 |
| Gross Vehicle Weight: | 31000 | Engine: | WD615.47 | Power: | 371hp |
| Driving type: | 8x4 LHD | Front axle loading capacity: | 9000kg*2 | Drive axles loading capacity: | 16000kg*2 |
| Gearbox: | HW19710 | Tire: | 295/80R22.5 | Tire munber: | 12+1 |
| Volume: | 36-45cbm | Color: | Buyer's Request | ||
Supply Ability
Supply Ability: 300 Unit/Units per Month
Packaging & Delivery
Packaging Details: Nude or Waxing in Roro or bulk ship
Port: China main port
Packaging Details: Nude or Waxing in Roro or bulk ship
Port: China main port

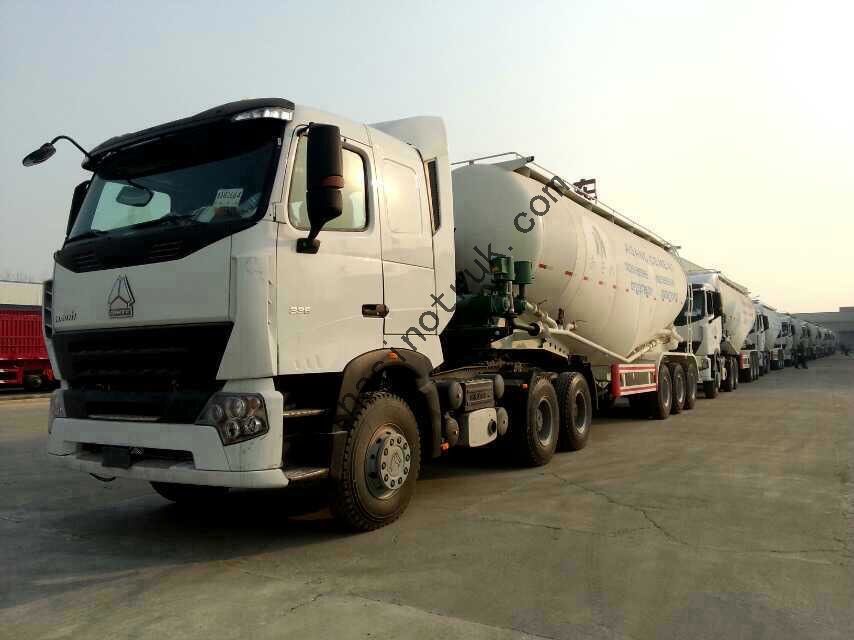

SINOTRUK HOWO A7 Bulk Cement Truck 371HP 8X4 LHD 25-43CBM
Product Description
Powder Material Transport vehicle also known as Bulk Cement truck, consists of special purpose vehicle chassis, tank body, pipeline system, automatic unloading device parts. Used in fly ash, cement, lime powder, mineral powder granular alkali particle diameter less than 0.1mm powder drying material in bulk transport. Mainly used for cement plant, cement warehouse and large construction sites, saving a great deal of packaging and handling labor. HOWO Powder Material Truck, adopts HW76 or HW70 Cab, and HF7 or HF9 front axle, HC16 driving axles. Chassis drive tyep have 4X2, 6X2, 6X4 and 8X4. The engine power from 266HP to 420HP.
Our company's production of Powder Material Transport Truck to optimize the structure of the vehicle, improving the safety and reliability, tank body is made from a special equipment produced, beautiful appearance. Optimization of tank structure enable effective volume, and increase the fluidizing effect. Air compressors use well-known brand, quality and stability, large amount of exhaust. Tank body can according to customer design into 36-45CBM volume, feed speed, low residual rate, high operating efficiency. Tank body adopts automatic welder welding, welding quality is good, strong pressure. Tank and metal.
accessories shot peening treatment paint adhesion, film uniformity, color bright durable.
Specification
| SINOTRUK HOWO A7 Bulk Cement Truck 371HP 8X4 LHD 36-45CBM ZZ1317N4667N1 | |
| Model | ZZ1317N4667N1 |
| Drive Type | 84 |
| Engine | WD615.47 , 371HP( Euro II)6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engineDisplacement : 9.726L |
| Cabin | A7-W lengthened cab(with one sleeper, air-conditioner and new-style seat) |
| Transmission | HW19710(10 forwards & 2 reverses) |
| Front Axle | 1HF9 ( 9 Tons) |
| Driving Axle | HC16, 16Tons |
| Steering | ZF8118 hydraulic steering with power assistance. |
| Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
| Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire |
| Wheel base | 1800+4600+1350(mm) |
| Overall dimension | 1199025003950(mm) |
| Capacity of Tank body | 36-45CBM, steel: Q235A/6mm or Q610/4mm |
| Air compressor | 10 cubic air compressor |
| The curb weight | 13950(Kg) |
| Gross weight | 31000 kg |
| Max. speed | 75km/h |
| Color | White, red, green, golden and so on. |
Picture Shows
Applications
Competitive Advantage:
1) Optimization of overall structure, high safety and reliability.
2) Tank Body is made from a special production tooling, beautiful appearance.
3) Optimization of tank body structure, large effective volume, fluidization effect is good.
4) Air compressor selection of domestic famous brand, with excellent performance.
5) Discharge quickly, residual rate is low, the operation efficiency is high, big gains.
6) High welding quality in automatic butt welding for high tank pressure strength.
7) with all kinds of truck model, which can fulfil your requirem
8) the key parts adopt the world's top technology products
9) based on strong technical support and top level technology make the trucks with high quality and more reliable
10) competive price, cost-effective
11) quick and efficient spare parts supply bring you more convenient
12) fast delivery time, we can arange production according to your needs exactly andquickly
13) professional import and export dealing precedure, make customs clearance more high efficiency

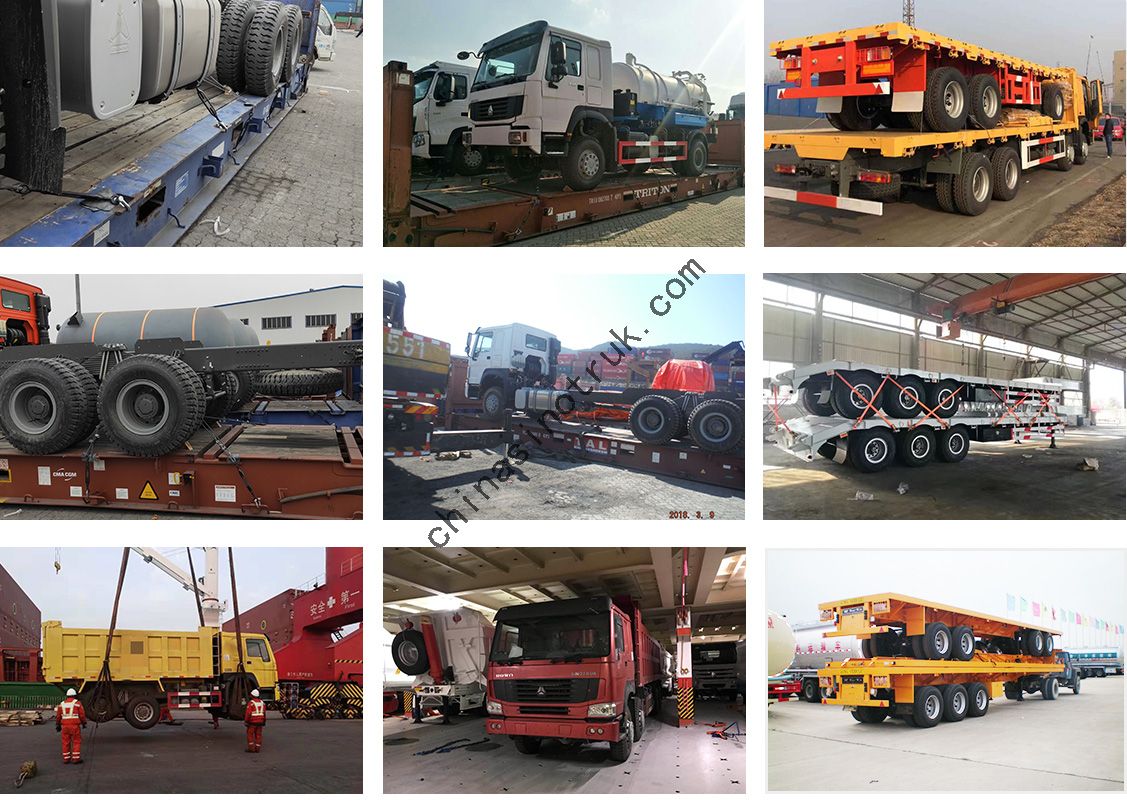

Batch export of vehicles
Ocean Shipping
IN NUDEChina main port
