Car Trasport

OverviewQuick DetailsUse:Truck TrailerType:Semi-TrailerMaterial:SteelCertification:ISO9100Size:16150*3000*4200mmOEM No.:car carrier semi trailerMax Payload:30000KGPlace of Origin:Hubei, China (Mainlan...
Request a Quote
没有此类产品
Product description
Engine
Chassis model
Mixing capacity

Overview

Quick Details
Use:Truck TrailerType:Semi-TrailerMaterial:Steel
Certification:ISO9100

  • Size:

16150*3000*4200mm

  • OEM No.:

car carrier semi trailer
Max Payload:30000KGPlace of Origin:Hubei, China (Mainland)Brand Name:
SINOTRUK HUAWIN
Model Number:/Product name:Long Distance Hydraulic System Carrier Car Transporter TrailerAxle:2 Axles
Tire:9.00R20 with one spare tireSuspension:Leaf Spring Suspension

Supply Ability
Supply Ability: 200 Unit/Units per Month
Packaging & Delivery
Packaging Details: 2 units in one 40HQ container
Port: China Main Port
Lead Time :30 Days after Deposit

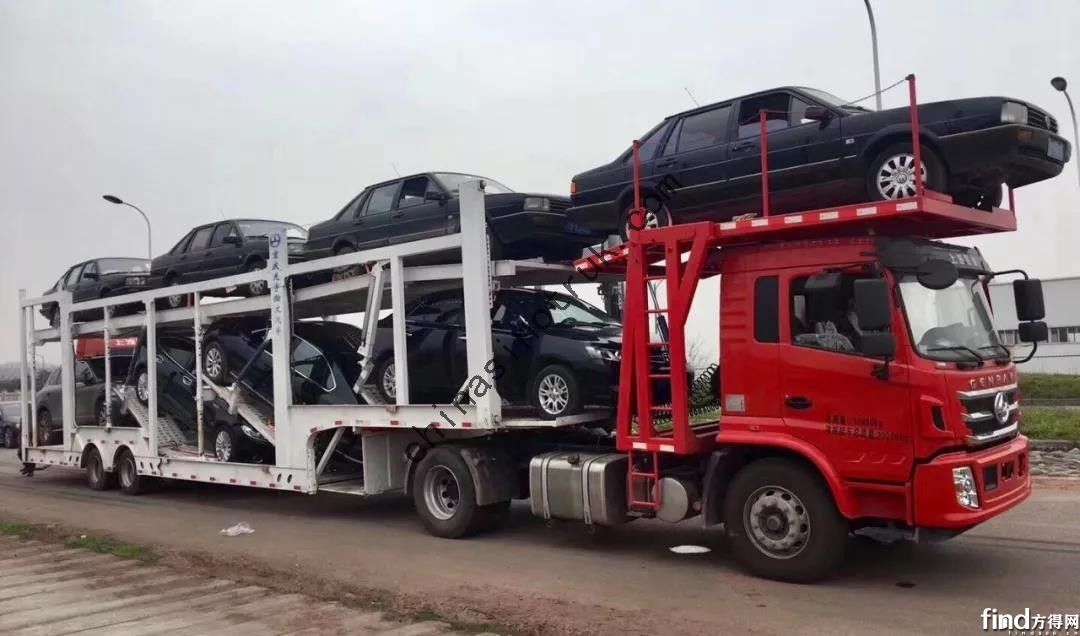

Long Distance Hydraulic System Carrier Car Transporter Trailer


Product Description
Double layer car carrier trailer carbon steel 2- axles Customize design, used for long distance or short distance car transportation. Double layer designed, it can load 12units car. We can design it in different structure and height, suitable for different numbers of loading, and different type of cars. There is hydraulic system to control the height of second layer. The ramp on rear side is for easy loading cars.
The advantage of SINOTRUK Huawin car carrier : Customize design, less weight, reliable structure, suitable for different car brands.
SINOTRUK Huawin is China famous special purpose vehicle manufacturer, located in Suizhou of Hubei province, China. It belongs to China National Heavy Duty Truck Group, has more than 800 workers to work on different types of special purpose vehicle. We have professional engineer team to make customized and humanization design for you.
Specification
Product NameLong Distance Hydraulic System Carrier Car Transporter Trailer
DIMENSIONS
Overall Length16150mm
Overall Width3000mm
Overall Height4200mm
Payload6,8,10 or 24 cars
SPECIFICATIONS
Main ConstructionOverall skeletal structure, Hydraulic lifting double-deck, Telescope rear ladder
I Beam &ChassisOverall loading chassis; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes.
Axle2 axles

FUWA 13 ton
SuspensionGerman design mechanical suspension
Hydraulic4 sets Hydraulic Cylinder
Leaf Spring8-piece leaf spring.
King PinJOST brand 2 Bolt-in King Pin
Landing GearJOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim7.0-20 steel wheel rim
Tire9.00R20 with one spare tire
Spare TireOne sets of spare tire
Braking SystemWABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
PaintingComplete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
AccessoriesOne standard tool box

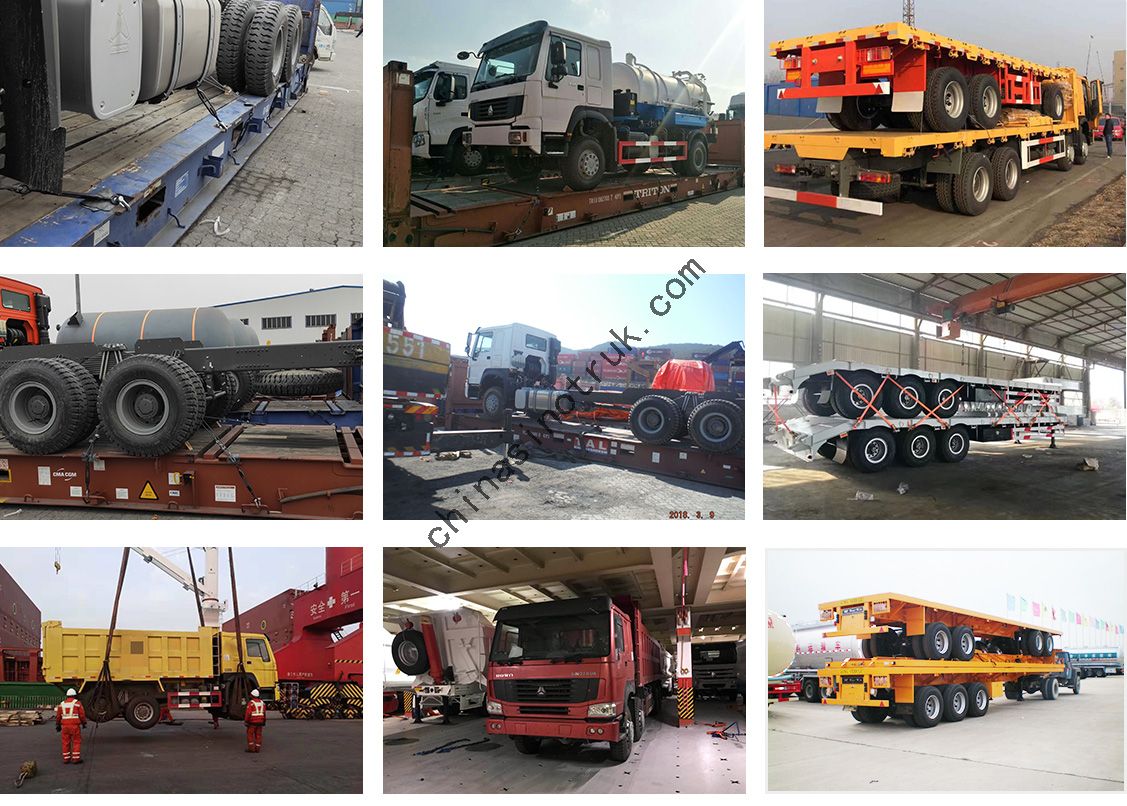

Batch export of vehicles

sinotruk

Ocean Shipping

sinotruk


IN NUDEChina main port


Corresponding parameter set not found, please add it in property template of background
暂未实现,敬请期待
暂未实现,敬请期待
