Mounted Crane Truck
Overview
| Quick Details | |||||
| Condition: | New | Capacity (Load): | 11 - 20t | Drive Wheel: | 4x2 |
| Horsepower: | 150 - 250hp | Transmission Type: | Manual |
| Euro 2 |
| Fuel Type: | Diesel | Engine Capacity: | 4 - 6L | Size: | 6900X2400X3450mm |
| 16000 kg | Place of Origin: | Hubei, China (Mainland) | Brand Name: | SINOTRUK |
| Model Number: | ZZ1127G4215C1 | ||||
Packaging Details: Nude or Waxing in Roro or bulk ship
Port: CHIAN MAIN PORT

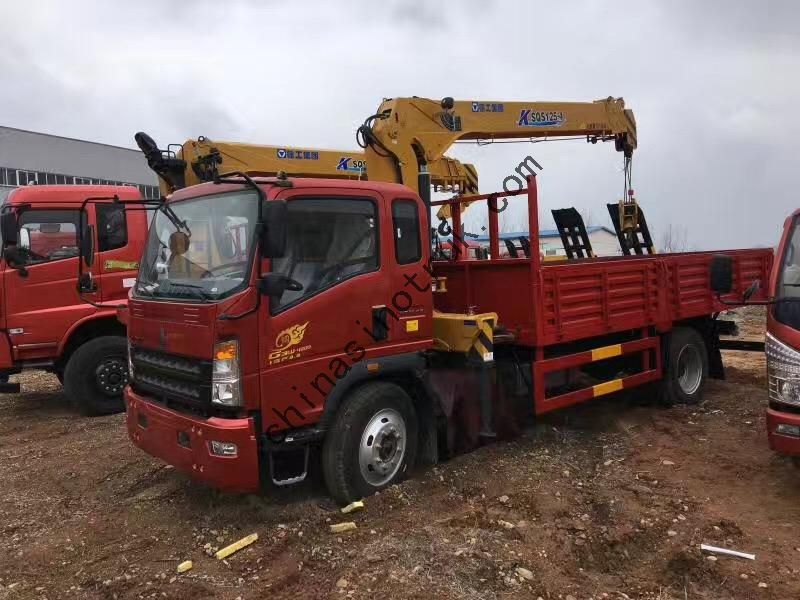

SINOTRUK HOWO 4X2 Crane Truck with 5 ton XCMG Mounted Crane
Truck with loading crane can lift and transport all kinds of goods, widespread use in transportation, civil construction (including constructional engineering, road and bridge engineering, municipal constructional engineering, mechanical engineering etc.), landscape sanitation, electricity and telecommunication industry, field operation, pipeline transportation, stone industry, dock cargo handing and long distance goods transfer. After installed additional device, it can be used for traffic accidents
Specification
| Chassis Model | ZZ1127G4215C1 |
| Drive Type | 42 |
| Engine | YC4E160, 160HP |
| Cabin | 2080mm width cab(without sleeper, air-conditioner and two new-style seat) |
| Transmission | DC6J65TC(6 forwards & 1 reverses) |
| Front Axle | 3.6 Tons |
| Driving Axle | 10.5 Tons |
| Clutch | hydraulically operating with air assistance |
| Rim/ Tire | 9.00R20 |
| Wheel base | 5200(mm) |
| Lifting Capacity | 5 Tons Crane (XCMG brand) |
| Dimension of cargo body | 5250*2300*550mm, Bottom:3mm Side:1.5mm |
| Lifting Height | 9.5m |
| Overall dimension | 775023503400mm |
| The curb weight | 6300(Kg) |
| Gross weight | 12490 kg |
| Max. speed | 95km/h |
| Color | White, red, green, golden and so on. |

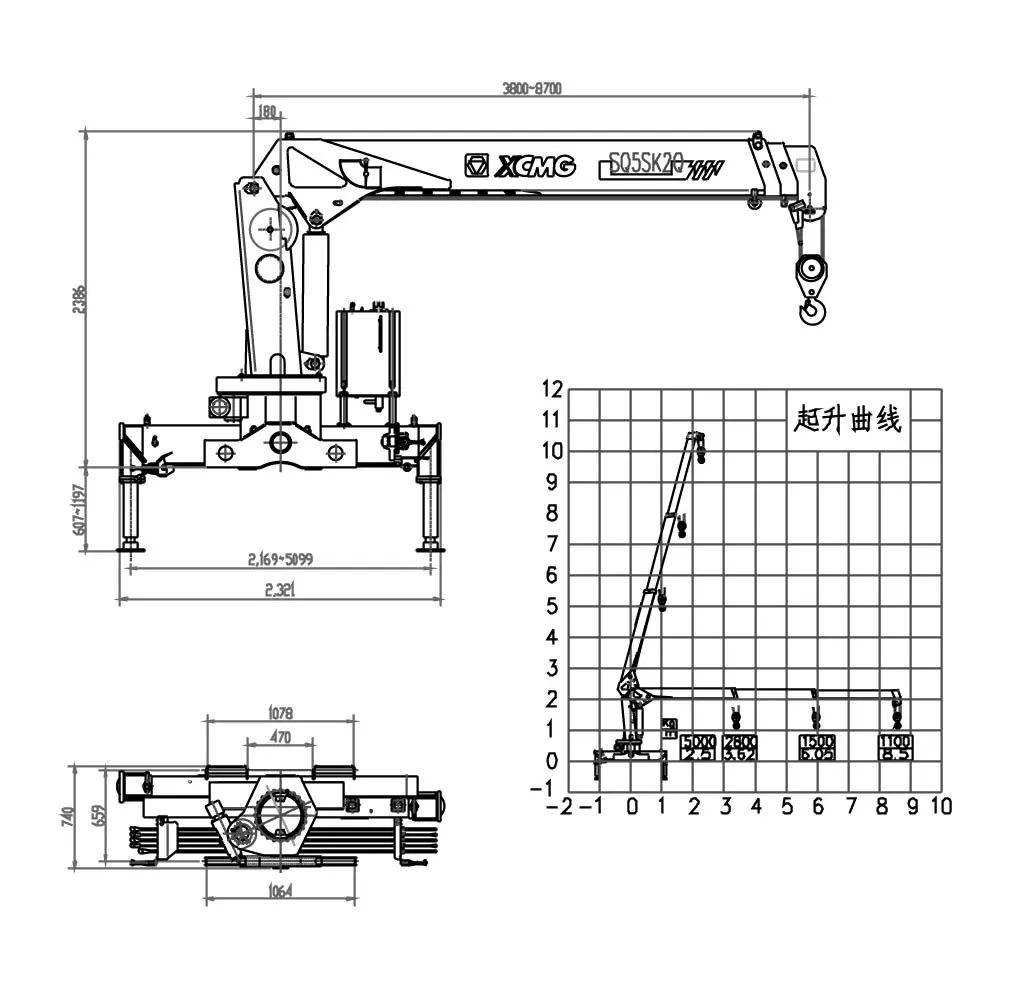

| Crane basic | |
| Crane type | SQ5SK2Q |
| Maximum lifting quality | 5000 kg |
| Maximum lifting moment | 12.5 T.M |
| Recommended power | 18 KW |
| Max Oil Flow of Hydraulic System | 32 L/min |
| Rated pressure of hydraulic system | 20 Mpa |
| Oil tank capacity | 90 L |
| Rotary angle | 360All Rotatio |
Picture Shows
Batch export of vehicles
Ocean Shipping
IN NUDEChina main port
