Curtain Semi-Trailer
Request a Quote
Product description
Engine
Chassis model
Mixing capacity
Overview
Quick Details | |||||
Use: | Other Trailers | OEM No.: | Requirement | Max Payload: | 40T |
Size: | 12500*2500*1550mm | Place of Origin: | Hubei, China (Mainland) | Brand Name: | SINOTRUK Huawin |
Model Number: | HUAWIN | Loading capacity: | 40ton | Axle: | Fuwa / BPW/K-Hitch |
Axle number: | 3 | Suspension: | Air Bag/Mechanical Suspension | Material: | Steel Q345 |
King pin: | JOST #90 or #50 | Support leg: | JOST C200 | Tire: | 12R22.5 |
Color: | Customer Request |
Supply Ability
Supply Ability: 300 Unit/Units per Month
![1667393535532908.jpg 1667393535532908.jpg](/static/upload/20221102/1667393535532908.jpg)
Packaging & Delivery
Packaging Details: naked packing,shipment by roro or bulk vessel
Port: China main port
Lead Time:25 working days after received your advance payment
Packaging Details: naked packing,shipment by roro or bulk vessel
Port: China main port
Lead Time:25 working days after received your advance payment
SINOTRUK Huawin 40ft Sliding Curtain Side Semi Trailer
The curtain side sliding door trailer opens and closes in mere minutes, ready to load and unload, and eliminates traditional flatbed tarping with the ease of closing the curtains.Curtainside has several exclusive features which sets it apart from the competition:
The Quick Closure releases to allow the curtain to be opened from either end in seconds, then when its time to close it back up it simply snaps back in place and the curtain tension is permanently set!
The Rolling Post supports the roof and rolls in a channel next to the curtain rollers, so it is always attached to the trailer. Simply slide it out of your way for loading and unloading and slide back into place when finished.
The Rail is a strong extruded and provides the channel for both the curtain rollers and the unique Rolling Post
![1667393535532908.jpg 1667393535532908.jpg](/static/upload/20221102/1667393535532908.jpg)
Specification
Dimensions | |||
Tare Weight | 6900kg | Payload | 40000kg |
Overall length | 14000mm | Overall Width | 2480mm/3950mm |
Specification | |||

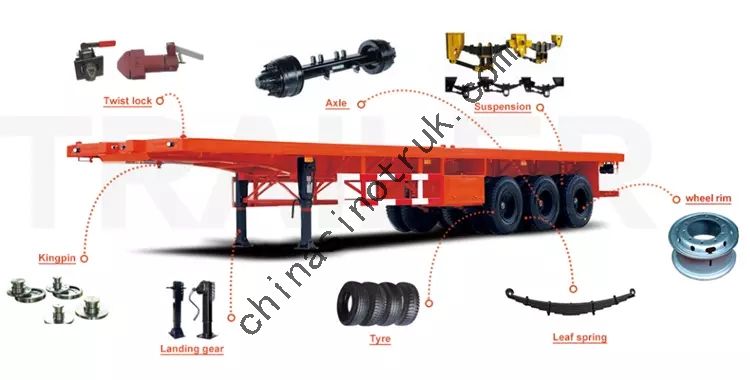

Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm, width 140mm, Middle Flange 6mm; Bottom Flange 16mm, width 140mm. | ||
Axle | 3 axles, Brand Name, BPW, L1 or FUWA-optional upon choice. | ||
Suspension | Mechanical suspension or air suspension upon requirement | ||
spring | Leaf spring or air bag | ||
King pin | JOST brand 2 Bolt-in king pin | ||
Landing Gear | JOST brand two-speed, manual operating heavy duty landing gear. | ||
Wheel rim | 8.5-20,9.0-20,8.25-22.5,9.0-22.5 steel wheel rim optional upon choice | ||
Tire | 11.00R20, 12.00R20,11R22.5,12R22.5,315/BDR225 tire optional | ||
Spare tire | One set spare tire including a carrier. | ||
Braking system | WABCO RE 6 relay valve;T30/30+T30 spring brake chamber;40L air tank. | ||
Painting | Complete chassis sand blasting to clean rust, 1 coat of anticorrosive prime,2 coats of final paint. | ||
Accessories | One standard tool box. |
Features
Amazingly durable curtains made from PVC coated Polyester
One-piece aluminum roof
Swing type rear doors with standard hinges and lock rods.
Steel framed FRP front wall
The superior design and quality workmanship of the SSI Curtainside ensure that your system will be durable and reliable for many years to come.
Optional
The axle can be FUWA,BPW,L1 and other brand.
Front axle lifting is optional

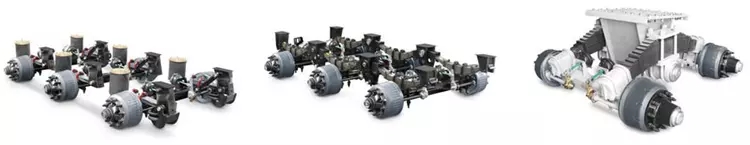

Air bag suspension/Mechanical suspension/Bogie
Aluminium ally rim
Tyres have 11R22.5;11.00R20;12.00R20;315/80R22.5;385/65R22.5
![sinotruk](/static/upload/20221102/1667393505563141.jpg)
![sinotruk](/static/upload/20221102/1667393506606634.jpg)
Applications
Competitive Advantage:
![sinotruk](/static/upload/20221102/1667393506947498.jpg)
1) Our company produces flat semitrailer divided into flat, concave beam and tire exposed structure, beam adopts flat type or goose neck. The frame is ladder type, the beam cross-section is I-shaped, has high anti breaking strength and bearing capacity.
2) The main plane of the frame is low, which ensures the smooth transportation, and is suitable for carrying all kinds of engineering machinery, large equipment and steel.
3) Using three axis balance, double axis balance or rigid suspension, the mass balance block is arranged between the front and rear leaf springs.
4) the key parts adopt the world's top technology products
5) based on strong technical support and top level technology make the trucks with high quality and more reliable
6) competitive price, cost-effective
7) quick and efficient spare parts supply bring you more convenient
8) fast delivery time, we can arrange production according to your needs exactly and Quickly
9) professional import and export dealing procedure, make customs clearance more high efficiency

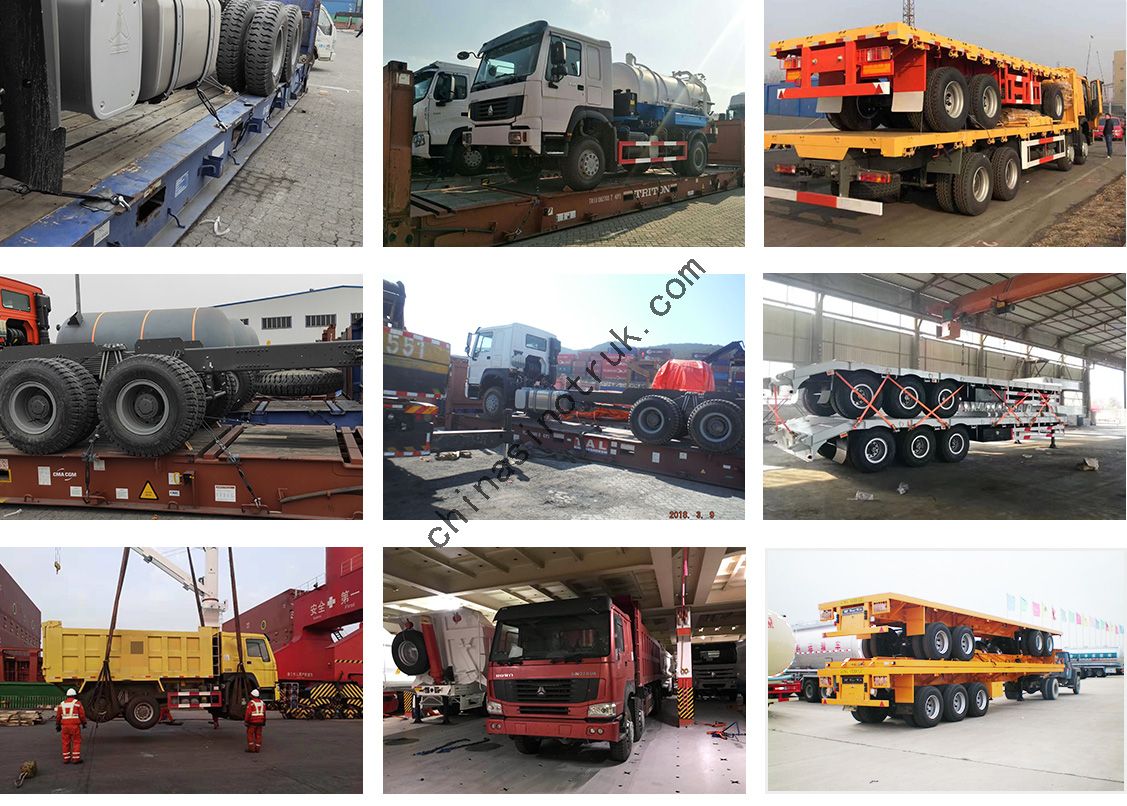

Batch export of vehicles
Ocean Shipping
