42000 Liters Aluminum Alloy Fuel Tanker Semi Trailer
3-axle Aluminum Tanker semi-trailer
30,000L-50,000L 3-axle Aluminum Tanker semi-trailer | ||
Feature: | Diesel, Gasoline, Chemical Liquid | |
Dimension(L*W*H): | 11000*2500*3700mm(30,000L) 11700*2500*3750mm(40,000L) 12000mm *2500mm*3800mm (42,000L) 13,000mm*2,500mm*3,750mm(47,000L) | |
Material: | Aluminum Alloy | |
Compartment: | 3-8 | |
Capacity(kgs): | 30,000L-50,000L | |
Tare weight(kgs): | 6,000-7,800kgs | |
Kingpin | JOST brand bolt-in/welded type 3.5/2 | |
Landing gear | JOST brand two-speed manual operation | |
Tire size | 11R22.5,12R22.5,315/80R22.5, | 385/65R22.5,425/65r22.5(Single tire) |
Rim size | 8.25*22.5, 9.00*22.5, | 11.75*22.5, 13*22.5 |
Axle | Original BPW-12T/ FUWA-13T | |
Leaf spring | leaf spring / Airbag suspension | |
Brake system | One unit WABCO RE 4 relay valve; four units T30/30 spring brake chamber; two units T30 spring brake chamber; two units reliable local brand 45L air tank; two units reliable local brand standard coppery air-connector. | |
Manhole: | Aluminum alloy ?500mm(20) manhole with aluminum alloy cover; with breather valve; | |
Discharge Valve | Aluminum alloy discharge valve with cover | |
Bottom Valve | Pneumatic control DN80 aluminum alloy bottom valves | |
Pneumatic Control system | 1set Pneumatic Control combined switch 1unit emergency switch | |
Discharge Hose | 2 units 3 X6M factory PVC hose with quick coupling on both ends | |
Vapor Recovery & Overfill system | Optional | |
Fire Extinguisher Carrier | 2 units at the left of rear of tanker, include 2 units 8kg dry powder type fire extinguisher inside | |
Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable | |
We can build the trailers according to customers design and requirement | ||
THE BENEFITS OF ALUMINUM Tanker semi-trailer
? No Rusting? No Cracking? Better Fuel Mileage? Better Tire Mileage? Last Longer? GREEN product? Stronger and Tougher? Easily Repairable? Save Spending on Multiple Repairs? Lighter than steel
Light Weight = Higher Load Weight
Aluminum tank trailers weigh on average 30 C 35% less than steel tank trailers. This means that youll be able to haul more with an aluminum tank trailer versus a steel one. The tanker volume can do bigger than a steel tanker under the same Road loading limited. Additionally, youll save money on gas when you happen to not be carrying a load
Competitive Advantage:
1) Divided into different oil products, chemicals, food, as liquid food truck, chemical liquid truck, insulation liquid vehicles, dangerous goods transport vehicles, the asphalt transportation vehicle2) External sandblasting processing of tank, internal anti-corrosion treatment, Outside surface adopts advanced polyurethane paint, beautiful appearance3) Our company produces the Oil tank truck with advanced butt welding technology, after the forming of the tank high pressure gas leak detection, the tank has a high intensity, stable center of gravity, safe and stable vehicle characteristics4) Shot blasting pre treatment process after welding tank, rust, paint adopts the advanced baking technology, durable and beautiful appearance. Independent sub positions5) with all kinds of truck model, which can fulfill your requirement6) the key parts adopt the world's top technology products7) based on strong technical support and top level technology make the trucks with high quality and more reliable8) competitive price, cost-effective9) quick and efficient spare parts supply bring you more convenient10) fast delivery time, we can arrange production according to your needs exactly and quickly11) professional import and export dealing procedure, make customs clearance more high efficiency

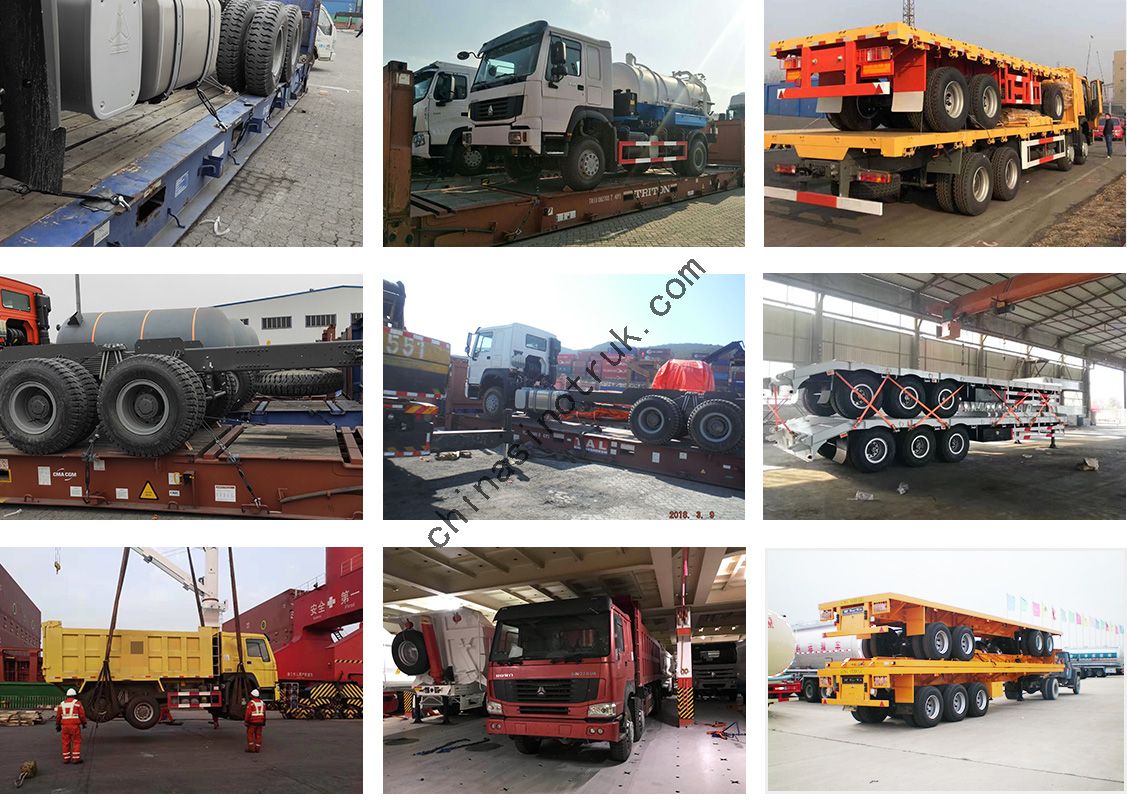

Batch export of vehicles
