OverviewQuick DetailsCondition:NewHorsepower:351 - 450hpDrive Wheel:6x4Transmission Type:ManualEmission Standard:Euro 4Engine Capacity:> 8LFuel Type:DieselBrand Name:HOWOSize:6985x2496x3230Gross Vehic...
Request a Quote
没有此类产品
Product description
Engine
Chassis model
Mixing capacity

Overview

Quick Details
Condition:NewHorsepower:351 - 450hpDrive Wheel:6x4
Transmission Type:ManualEmission Standard:Euro 4

  • Engine Capacity:

> 8L
Fuel Type:DieselBrand Name:HOWOSize:6985x2496x3230

  • Gross Vehicle Weight:

25000 kgEngine:D10.38-40Power:380hp
Driving type:6x4 LHD/RHDTransmission:HW19710Front axle:HF7 / HF9
Driving axle:ST16/HC16Tire:315/80R22.5Cabin:HW76
Fuel tank:400LColor:Customer's Requirement

Supply Ability
Supply Ability: 500 Unit/Units per Month
Packaging & Delivery
Packaging Details: we transport the vehicle in nude ,or by roro vessel,or in wax by bulk vessel or by container if possible.
Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee
Port: China main port

SINOTRUK Howo 6x4 380HP Tractor Truck


Specification
Vehicle seriesHOWO-7 6x4 Highway Tractor
CabHW76/HW79
EngineModel380 HP
Power(Kw/rpm)276/2200
Maximum torque(Nm/rpm)1560/1200-1500
Displacement(L)9.726L
Transmission

SINOTRUK HW series 10 gears Transmission, main and auxiliary transmission structure, main transmission with double counter shaft ,auxiliary transmission with planetary reduction.

standard HW19710,optional HW19710T,HW19712

Clutch430diaphragm spring Clutch,Hydraulic control air assisted.   standard CH430-21
Front axle

HF7,rated load of 7 tons, drum-type

Optional:

HF9,rated load of 9 tons, drum-type

Rear axle

MCY13Q double reduction ,speed ratio:3.36,3.7,4.11;

optional:

ST16 double reduction, speed ratio:3.93,4.42,4.8;

HC16 double reduction, speed ratio:3.93,4.42,4.8,5.73

Steering gearbosch steering gear,  system pressure 18MPa
SuspensionSteer Axlefront and rear leaf spring  suspension, front suspension with shock absorber,transverse stabilizer
Drive Axlefront and rear leaf spring  suspension,rear suspension is disconnected type with transverse stabilizer.
Braking systemService brakedual-circuit air pressure brake
Parking Brakespring storage energy without air
Auxiliary brakeEngine exhaust  braking;Optioanl ABS,Engine EVB and  optional auto clearance adjusting arm
Electric systemVoltage24V
Generator2KW
Batteries12V/165Ah,2 pieces
Starter Power24V,7.5kW
Wheels & TyresTyres315/80R22.5
Optional12.00R20; 12R22.5;315/80R22.5
Fuel TankCapacity400 Liter;optional:600 Liter
Weights (kg)Curb weight9100
Gross Vehicle Weight25000
Design loading capacity at fifth wheel15640-15690
Vehicle Dimensions (mm)Overall length x Overall width x Overall height6980x2496x3125/3730
Wheelbase3225+1350
Front overhang/Rear overhang1500/725
Wheel track of front axle2022
Wheel track of rear axle1850
PerformanceMaximum speed(km/h)92/102
Maximum gradeability(%)20
Minimum turning diameter(m)15

Picture Shows




Applications:
Its suitable for towing all kinds semi trailer which is used in Logistics business, construction site and Mining area.
This model is the proven product of SINITRUK, which features reliable structure, great loading capacity, excellent power from 336-420HP, reliable performance. This model can meet the requirements of different road conditions. This model can satisfy your need of long distance highway transportation.
The fifth version of the highway transport is equipped with iron reinforced frame, Iron shell transmission and two-stage reduction drive axle which can loaded16 ton, single-stage reduction drive axle, which can loaded 16 ton is optional, mainly used for comprehensive road conditions and overloading of the transport conditions.

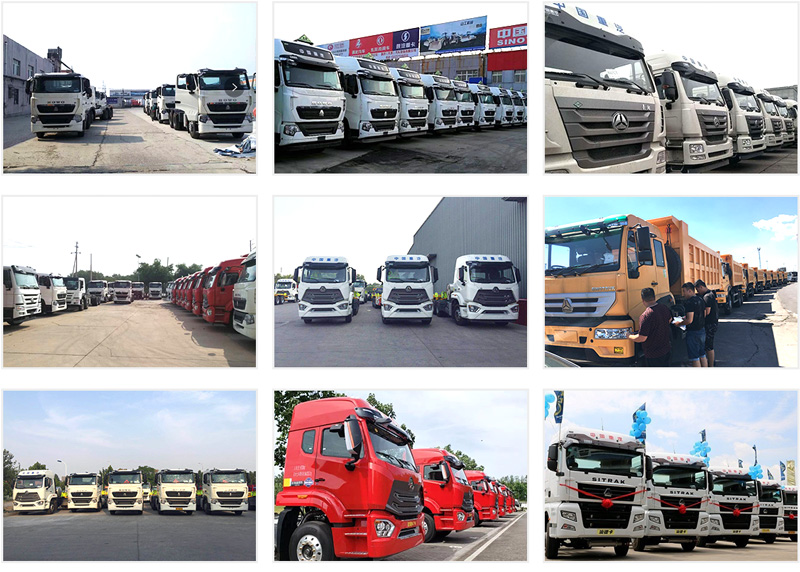

Batch export of vehicles

sinotruk

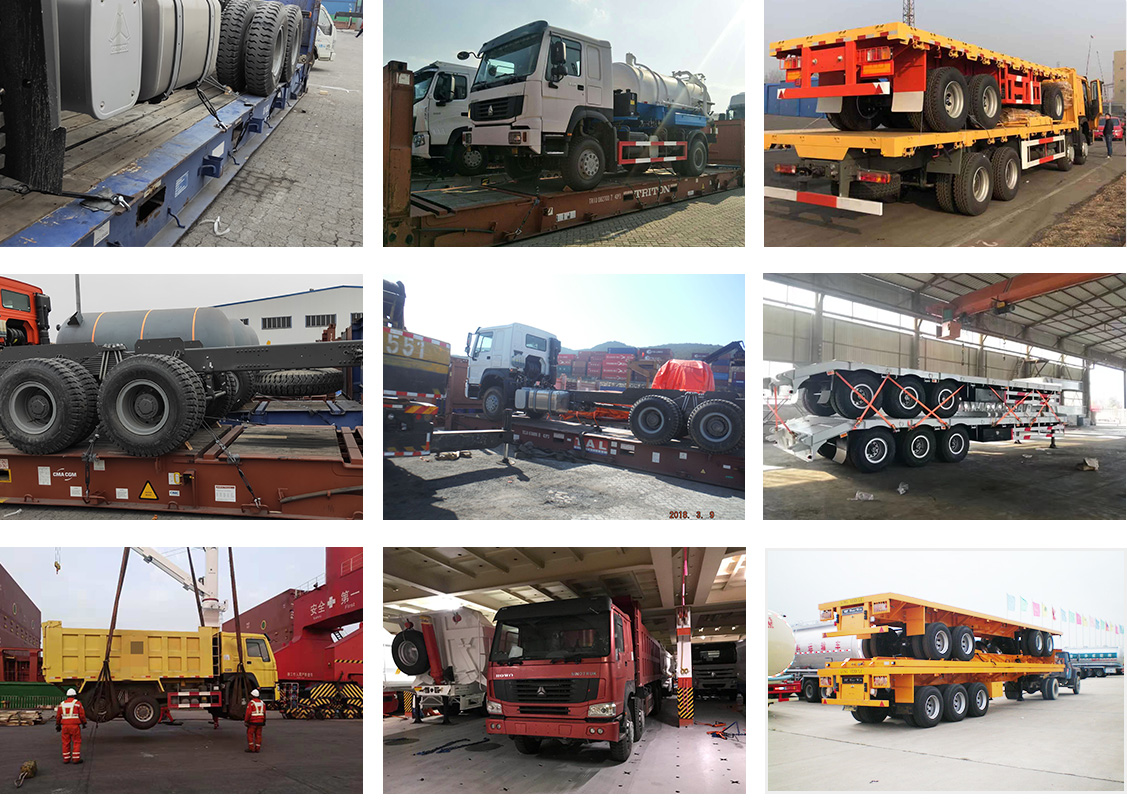

Ocean Shipping

sinotruk


IN NUDEChina main port
