Product description
Engine
Chassis model
Mixing capacity

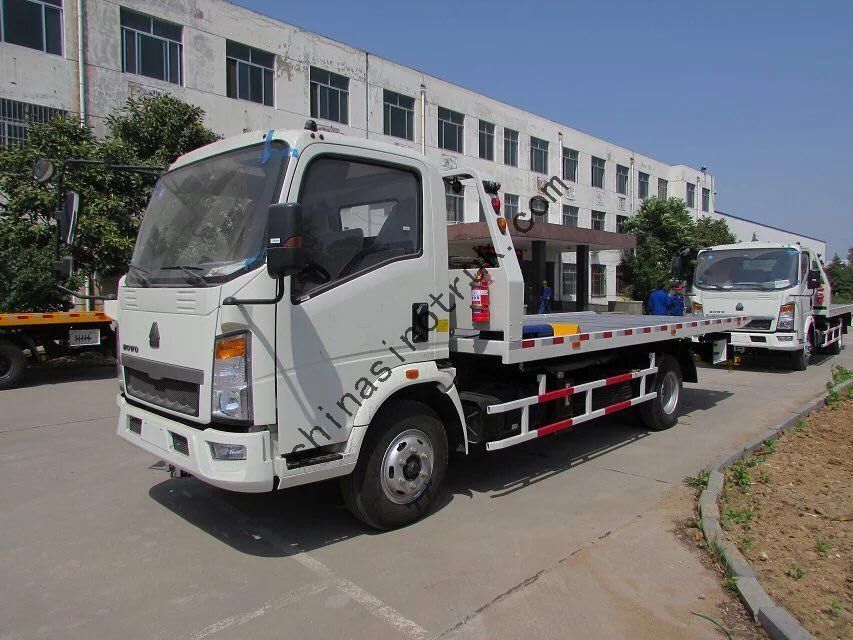

SINOTRUK HOWO 4x2 Towing Truck
Chassis Model: ZZ1087D3815C1R
Driving Type: 4x2
Overall Dimension: 760025002650mm
Cabin
1880mm cabin with AC
Engine- EuroIII
Model
CY4102BZLQ, 4-cylinder in-line, 3.856litre, diesel
Rated power: 120hp/88KW@2800rpm; Maximum torque:392N*m@1400~1800 rpm
Features
Turbo-charging and Inter-cooling
Electric control flame out
Electric heating for intake air
Transmission:
WLY6T46,6-speed manual control gearbox
Maximum input torque: 460Nm
Rated rotation speed: 2800rpm
Centre distance: 115mm
Steering SystemPower steering & Adjustable steering wheel
Axles
Front:1061, forging I-beam; Drum brake; Loading capacity 2.4T
Rear:1080, pressed welding axle housing; Drum brake; Ratio: 5.286 ; Loading capacity 7.2T
Suspension
Front Semi-elliptical leaf springs with shock absorbers
Rear Semi-elliptical leaf springs with shock absorbers
Fuel Tank
Capacity 120 Liter
Type Steel ,lockable
Braking System
Type Air brake system
Service brake Dual-circuit air brake
Parking brake Spring energy brake
Auxiliary brake Exhaust brake(Option)
Electrical System
Voltage 24 V
Batteries 2x 12V,80Ah
Alternator 28V/35A
Starter 4.5KW
Options 100Ah batteries
Wrecker assembly parts:
Max. Lifting weight 1500kg
Max. Lifting weight of full extending boom 1200kg
Effective length of boom 1600mm
Extension traveling of boom 1200mm
Elevation of boom (upper/ lower) 9~-10
Min. Elevation of full extending platform 8
Max. Loading of platform 3000kg
External dimension of platform (lengthwidth)
57002300mm
Max. Pulling power of winch : 4000kg
Dia. Of steel cable : 10mm
Length of steel cable: 25m
Min. Speed of steel cable 5m/min
Batch export of vehicles
Ocean Shipping
