Tipper Semi Trailer-U Shape Type
Overview
Supply Ability
Supply Ability: 300 Unit/Units per Month
Packaging & Delivery
Packaging Details: We transport the vehicle in nude ,or by roro vessel,or in wax by bulk vessel or by container if possible. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
Port: China main port
Lead Time:30-40 days

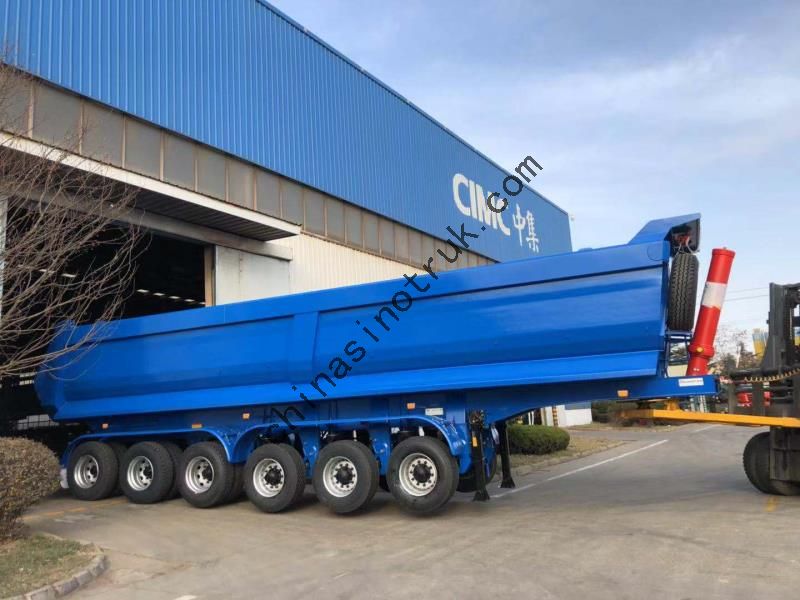

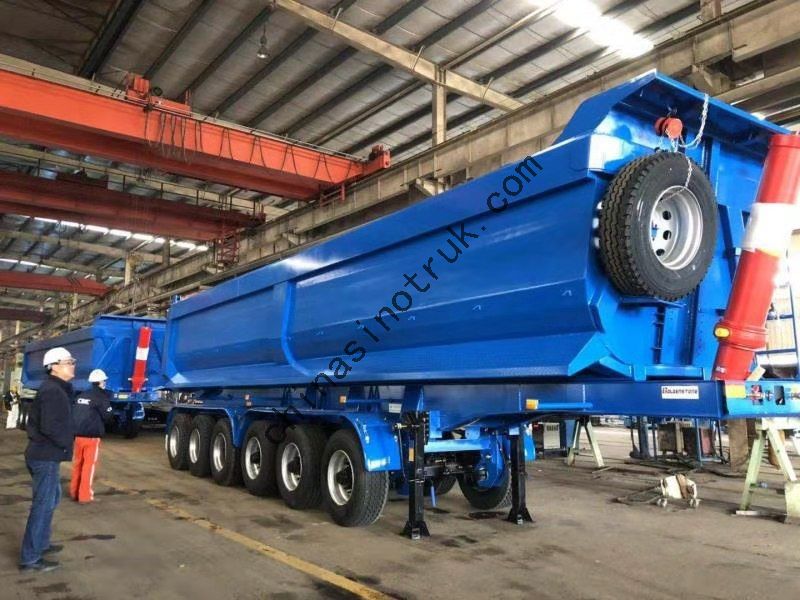

24cbm 3 axles U Shape Dump Semi Trailer
Dump Trailers is used for carrying bulk materials. In this kind of trailers you can carry stone, wreck stones, sand and any kind of bulk materials. In Tipper Trailers there is a hydraulic cylinder applied by our company that works to lift the whole trailer we can made different loading capacities starting from 24 m3 up to 45 m3 as the costumer demand with different suspension types . We can offer customers different kind of Tipper Trailers solutions for their loads.
Competitive Advantage- U Shape Dump Semi Trailer
Frame body Q345B high strength structure steel, automatic submerged arc welding throughout beams, and other cross-section main stringers structure for optimum carrying effect.
Well-known brand axles, suspension systems, high performance, and reliable to use, to ensure the good performance of the vehicle.
Our U Shape Dump Semi Trailer are equipped with HYVA cylinder, which is more reliable and more safety
Full braking and electrical systems at home and abroad in accordance with ISO standard, optional ABS system, braking, lighting is absolutely safe and reliable.
We suppply tipper semi trailers with multiple customization options.
Specification
Product Name | 24cbm 3 axles U Shape Dump Semi Trailer | ||
Tare Weight | 8600 kgs | Payload | 40000 kgs |
Overall Length | 8500 mm | Overall Width | 2500 mm |
DUMPER BODY | |||
Type | U Type | Volume | 24m3 |
Dump body inner size | 7500mmx2300mmx1500mm | ||
Side Wall | 4mm Q610L High tensile steel | Front Wall and floor | 6mm Q610L High tensile steel |
SPECIFICATION | |||
Chassis | Heavy duty and extra durability designed I beam; high tensile steel Q345B for chassis and 610 for dumper body. Top Flange 16mm,width 140mm; Middle Flange 10mm ; Bottom Flange 18mm,width 140mm. | ||
Axle | 3 axles of 11ton, 13 ton, 16 ton axle optional upon choice | ||
Brand Name: BPW, L1 or FUWA-optional upon choice | |||
Hydraulic System | One set of HYVA cylinder. | ||
Suspension | Non-liftable Air suspension or Mechanical Suspension | ||
Spring | Leaf spring or air bag | ||
King Pin | JOST brand 2 Bolt-in King Pin | ||
Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | ||
Wheel Rim | 9.0R22.5 wheel rim, 13 pieces | ||
Tyre | 12R22.5 tubeless tire with one spare tire, 13 pieces | ||
Spare Tire | One set of spare tire including a carrier | ||
Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 40L air tanks | ||
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | ||
Accessories | One standard tool box | ||
Applications
Flat bed semi trailer for a variety of Container 20ft and 40ft
Competitive Advantage:
1) Our company produces flat semitrailer divided into flat, concave beam and tire exposed structure, beam adopts flat type or goose neck. The frame is ladder type, the beam cross-section is I-shaped, has high anti breaking strength and bearing capacity.
2) The main plane of the frame is low, which ensures the smooth transportation, and is suitable for carrying all kinds of engineering machinery, large equipment and steel.
3) Using three axis balance, double axis balance or rigid suspension, the mass balance block is arranged between the front and rear leaf springs.
4) the key parts adopt the world's top technology products
5) based on strong technical support and top level technology make the trucks with high quality and more reliable
6) competitive price, cost-effective
7) quick and efficient spare parts supply bring you more convenient
8) fast delivery time, we can arrange production according to your needs exactly and Quickly
9) professional import and export dealing procedure, make customs clearance more high efficiency

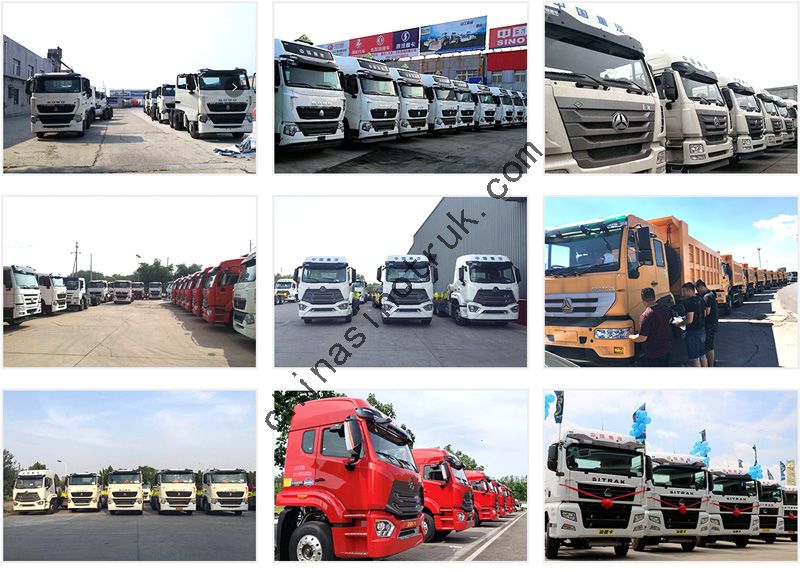

Batch export of vehicles

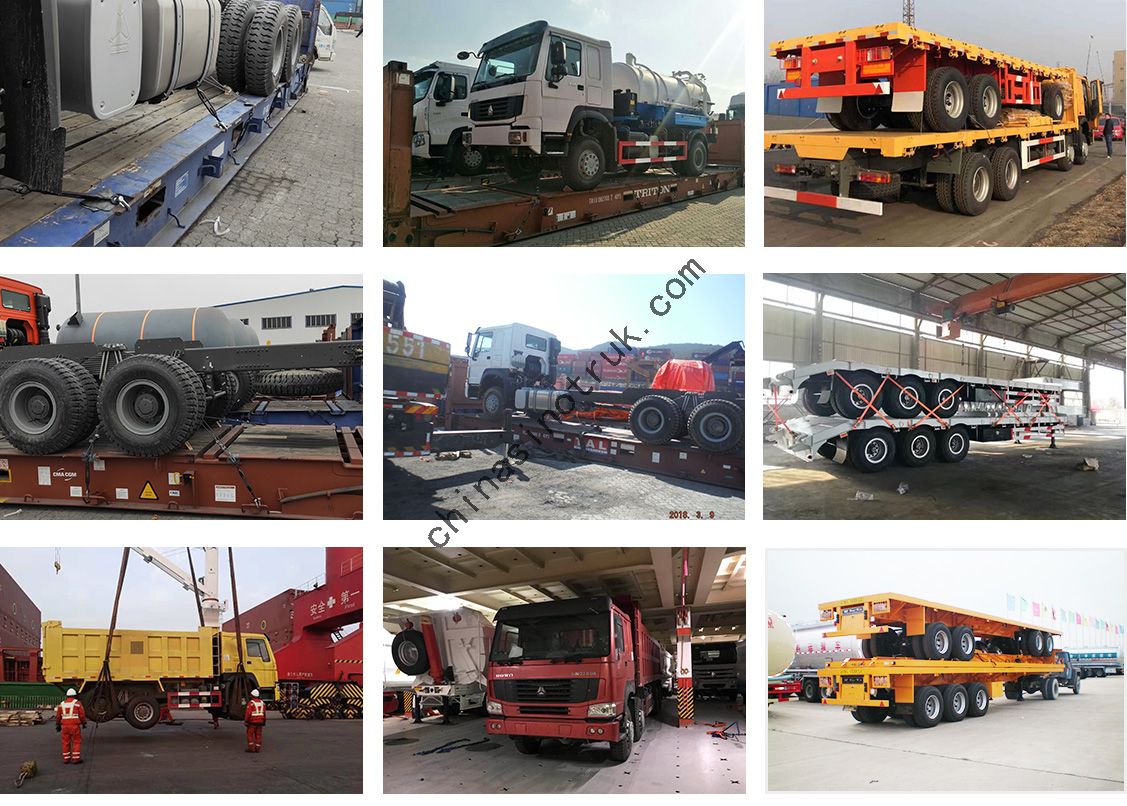

Ocean Shipping
