Van Semi-trailer
Request a Quote
Product description
Engine
Chassis model
Mixing capacity
Overview
| Quick Details | |||||
| Condition: | New | Transmission Type: | Manual | Emission Standard: | Euro 2 |
| Fuel Type: | Diesel | Dimensions (L x W x H) (mm): | 13000*2500*3650 | Gross Vehicle Weight: | 26000 |
| Place of Origin: | Hubei, China (Mainland) | Brand Name: | huawei | Product name: | huawin Trailer van trailer |
| Type: | 12R22.5 | Spare tyre: | with one spare tyre | cargo body size: | 13000*2500*3650mm |
| Color: | Buyer's Request | ||||
Supply Ability
Supply Ability: 300 Unit/Units per Month
Packaging & Delivery
Packaging Details: naked packing,shipment by roro or bulk vessel
Port: Tianjin, Shanghai, Qingdao or as your needs
Lead Time:
Packaging Details: naked packing,shipment by roro or bulk vessel
Port: Tianjin, Shanghai, Qingdao or as your needs
Lead Time:
| Quantity(Units) | 1 - 10 | >10 |
| Est. Time(day) | 30 | To be negotiated |
Specification
| DIMENSIONS | ||
| Tare Weight | 4500kg | China new 3 axle Van semi trailer for sale |
| Overall Length | 13000mm | |
| Overall Width | 2480mm | |
| Payload | 3650kg | |
| Photo for reference. Final products can be made according to exact requirements | ||
| SPECIFICATION | ||
| Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,height 500mm; Bottom Flange 16mm,width 140mm. | |
| Axle | HJ Brand: 2X 13000KGS axles of Germany design | |
| Suspension | Germany design heavy duty mechanical suspension | |
| Leaf Spring | Leaf spring | |
| King Pin | JOST 2.0 Bolt-in King Pin | |
| Landing Gear | JOST Two-speed, manual operating, heavy duty landing gear | |
| Wheel Rim | 9.00-22.5 steel wheel rim, 8pcs | |
| Tire | 12R22.5 Tubeless Tire, 8pcs | |
| Spare Tire | One set of spare tire including a carrier | |
| Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber | |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | |
| Accessories | One standard tool box | |

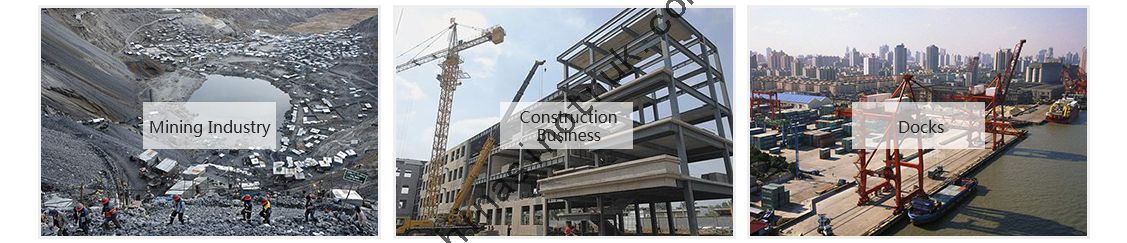

Applications
Competitive Advantage:
1)severall kinds of cargo body structure , make it light weight , high rigidity , high loading capacity.
2)adopt the high strength steel, make it has a long service life.
3)The imported hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
4)excellant apperance of cabin, safety, reliable.
5)lower fuel consumption.
6) strong enough engine.
7)with all kinds of truck model, which can fulfil your requirements.
8)the key parts adopt the world's top technology products.
9)based on strong technical support and top level technology make the trucks with high quality and more reliable.
10)competive price, cost-effective.
11)quick and efficient spare parts supply bring you more convenient.
12)fast delivery time, we can arange production according to your needs exactly and quickly.

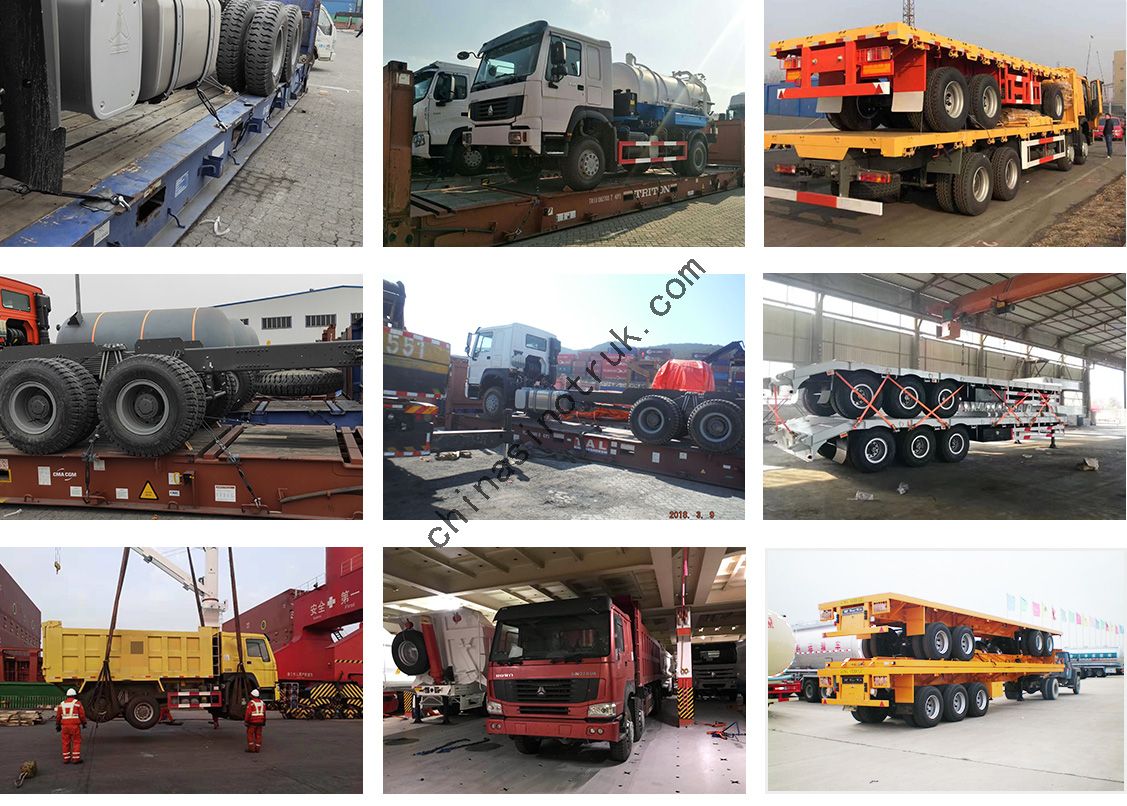

Batch export of vehicles
