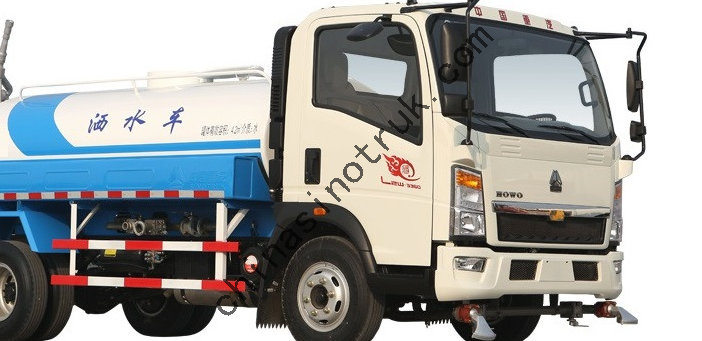

HOWO 4X2 Light Duty Small Water Truck
Sinotruk Howo 4x2 5-10 cbm Water bowser truck
Product Description
Sinotruk Howo Water bowser truck for Landscape Engineering or Mining area. Our company production of Water bowser truck have the character of high pressure, spraying range wide, good flushing effect and so on.
Specification
Water Tank Truck SINOTRUK HOWO | |||
Chassis Model | ZZ1107D3815/ ZZ1087F381C ZZ1107G421CD1 ZZ1107G451CD1 | ||
Drive Type | 42 | ||
Engine | YN4102QBZL | Emission/kw | 3760 ml/ 85 kw/116 Hp |
ISF3.8s3141 | Emission/kw | 3760 ml/ 105 kw/141 Hp | |
ISF3.8s3154 | Emission/kw | 3760 ml/ 115 kw/154Hp | |
ISF3.8s3168 | Emission/kw | 3760ml/ 125 kw/168 Hp | |
Diesel, 4 cylinders, direct-line. Turbocharge and water-cooling. Euro3 Standard | |||
Cabin | 2080 lengthened cab (with one sleeper, air-conditioner and two new-style seat) | ||
Transmission | Manual control transmission; 6 forwards & 1 reverses | ||
Axle loading capacity | Front /Rear: 2700kgs/7200kgs Front /Rear: 3200kgs/8200kgs | ||
Driving Axle | 8.2 Tons | ||
Clutch | hydraulically operating with air assistance | ||
Rim/ Tire | 8.25R16/ 8.25R20 | ||
Wheel base | 3800 or 4200 or 4500(mm) | ||
Capacity of tank body | 5-10CBM | ||
Spraying width of travel | 14.8m | ||
Spraying height | R30m | ||
Water sucking depth | R4m | ||
The curb weight | 6300(Kg) | ||
Gross weight | 12490 kg | ||
Max. speed | 95km/h | ||
Color | White, red, green, golden and so on. | ||

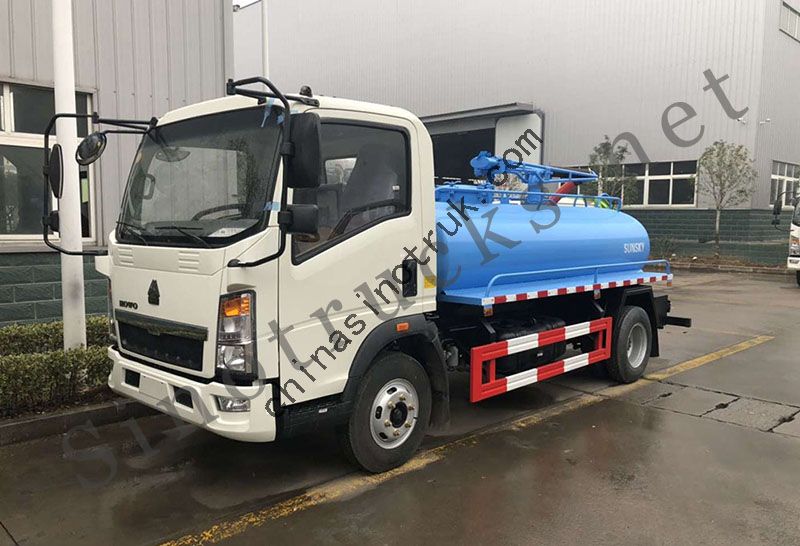

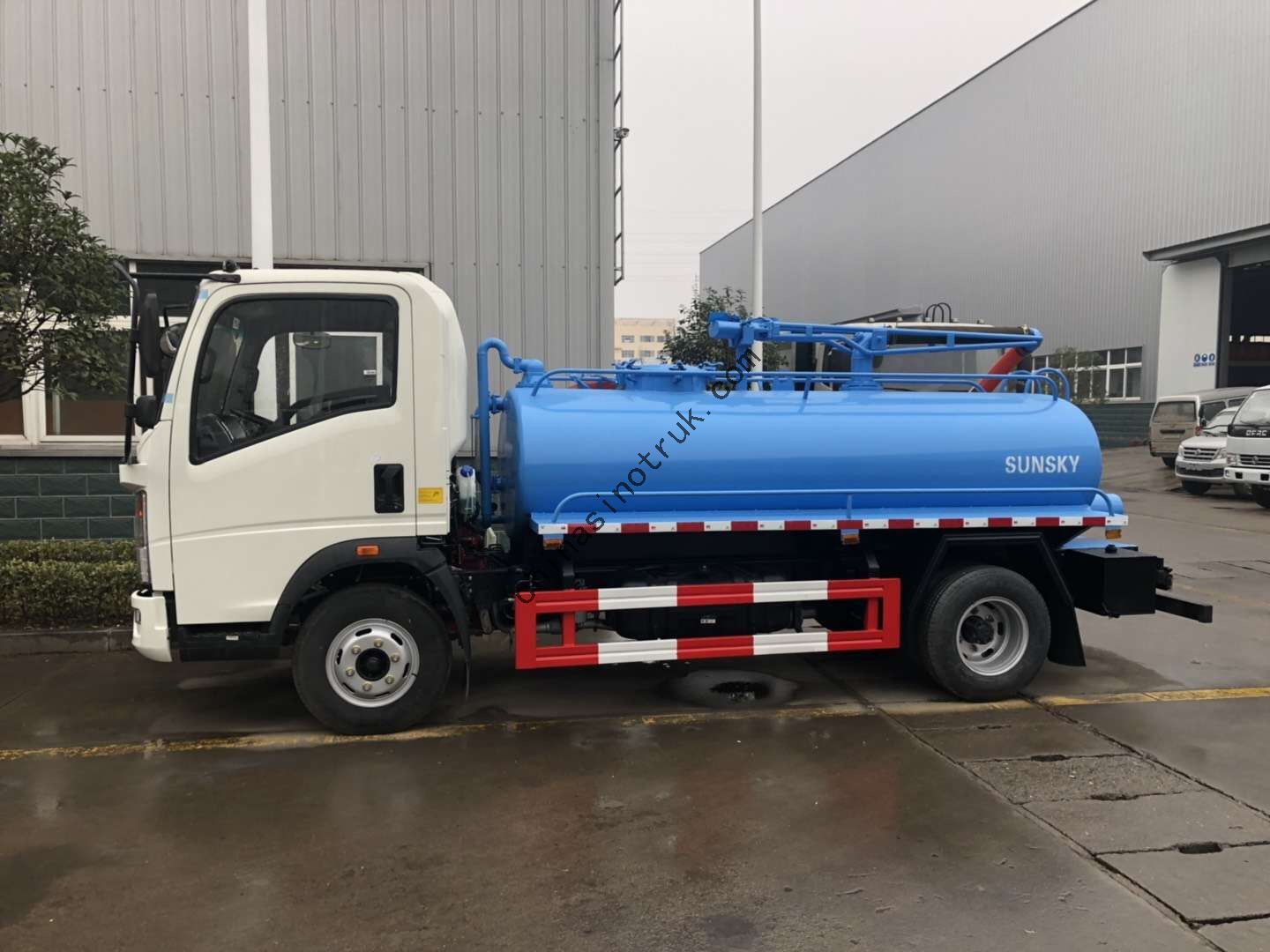

Picture Shows
Applications
The Water tank truck is mainly used for construction of mines and other enterprises, road flushing and dust covering in large-medium-scale cities.
Competitive Advantage:
1) High pressure, wide range of spraying good flushing effect
2) Blunt head universal adjustment, meet the arbitrary Angle and the combination of the flush operation
3) Pneumatic control and manual control system can realize two functions
4) External sandblasting processing of tank, internal anti-corrosion treatment, Outside surface adopts advanced polyurethane paint, beautiful appearance
5) with all kinds of truck model, which can fulfill your requirement
6) the key parts adopt the world's top technology products
7) based on strong technical support and top level technology make the trucks with high quality and more reliable
8) Front and back high spray is optional, water jet diffusion function, 360 degrees of rotation, 150 degree tilt up and down. Options small flow pump, spraying reel to wake insecticidal garden trees flowers and plants
9) competitive price, cost-effective
10) quick and efficient spare parts supply bring you more convenient
11) fast delivery time, we can arrange production according to your needs exactly and quickly
12) professional import and export dealing procedure, make customs clearance more high efficiency

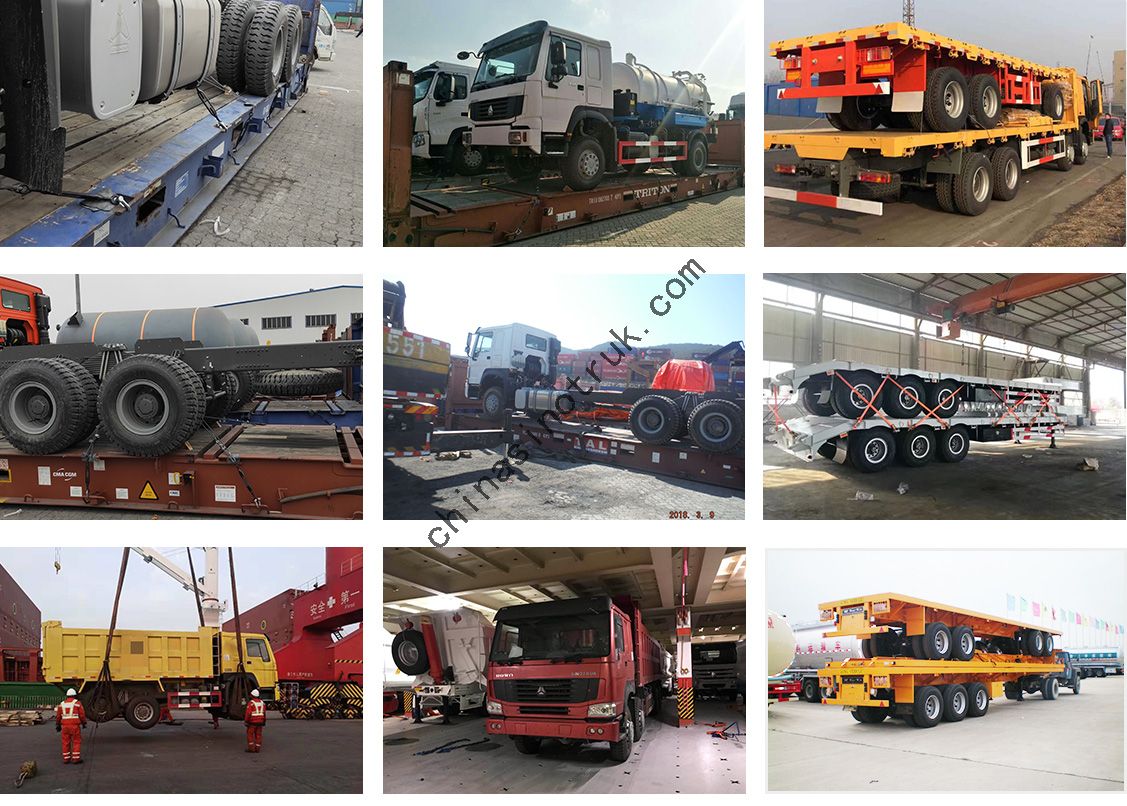

Ocean Shipping
