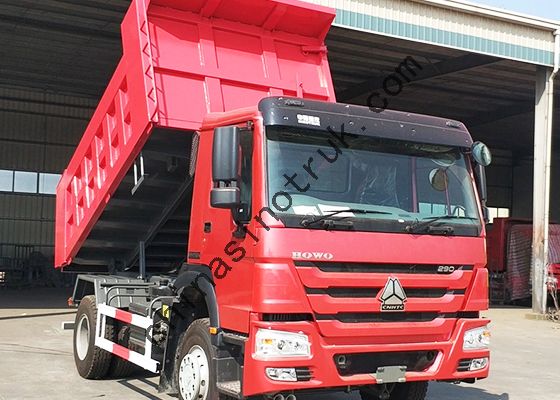

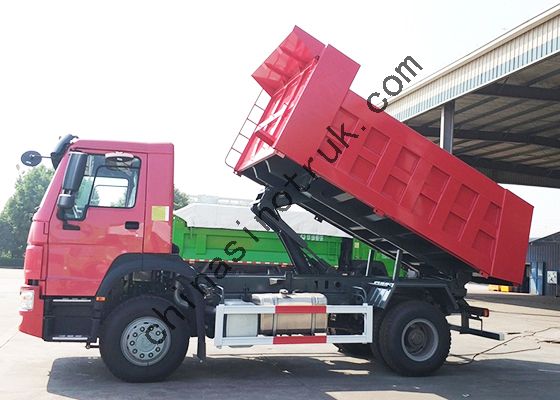

HOWO 4X2 Dump Truck-1
Request a Quote
Product description
Engine
Chassis model
Mixing capacity
Quick Details | |||||
Drive Wheel: | 4x2 | Capacity (Load): | 11 - 20t | Horsepower: | 251 - 350hp |
Condition: | New | Transmission Type: | Manual | Emission Standard: | Euro 2 |
Fuel Type: | Diesel | Engine Capacity: | > 8L | Gross Vehicle Weight: | 16 |
Place of Origin: | Hubei, China (Mainland) | Brand Name: | SINOTRUK | Dimensions (L x W x H) (mm): | 7500x2500x3400mm |
Engine power: | 290HP | Displacement: | 9.726L | Wheels number: | 6 wheels |
Transmission: | HW19710 | Front axle loading capacity: | 9000kg | Drive axles loading capacity: | 16000kg |
Type: | 12R22.5 | Spare tyre: | with one spare tyre | cargo body size: | 4200x2300x1500mm |

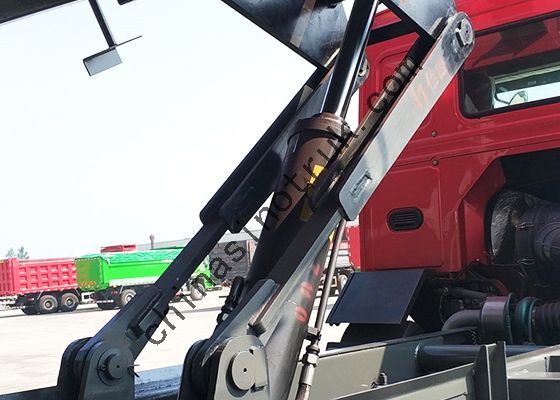

Color: | Buyer's Request | Lifting system: | Middle lifting system |
Supply Ability
Supply Ability: 600 Unit/Units per Month
Packaging & Delivery
Packaging Details: naked packing,shipment by roro or bulk vessel
Port: main port in China
Lead Time:
Packaging Details: naked packing,shipment by roro or bulk vessel
Port: main port in China
Lead Time:
Quantity(Units) | 1 - 20 | >20 |
Est. Time(day) | 35 | To be negotiated |
![1667231332566209.png R$T({VUBXOB0ZM53JS(AOC4.png](/static/upload/20221031/1667231332566209.png)
Specification
Model | ZZ3167M3811 |
Drive Type | 42 |
Engine | WD615.87 ,290HP( Euro II) 6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine Displacement : 9.726L |
Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat) |
Transmission | HW19710(10 forwards & 2 reverses) |
Front Axle | 1HF9 ( 9 Tons) |
Driving Axle | HC16, 16Tons*1 |
Steering | ZF8118 hydraulic steering with power assistance.(ZF8098 for RHD) |
Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
Rim/ Tire | 12R22.5/11.00R20/12.00R20/13R22.5 |
Wheel base | 3800(mm) |
Overall dimension | 750024963450(mm) |

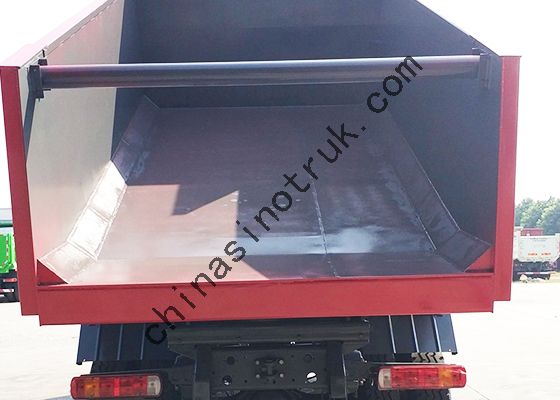

Cargo body | 420023001500(mm),Bottom:8mm, Side:6mm |
The curb weight | 11200(Kg) |
Gross weight | 16000 kg |
Max. speed | 75km/h |
Color | White, red, green, golden and so on. |
Competitive Advantage:
1)severall kinds of cargo body structure , make it light weight , high rigidity , high loading capacity.
2)adopt the high strength steel, make it has a long service life.
3)The imported hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
4)excellant apperance of cabin, safety, reliable.
5)lower fuel consumption.
6) strong enough engine.
7)with all kinds of truck model, which can fulfil your requirements.
8)the key parts adopt the world's top technology products.
9)based on strong technical support and top level technology make the trucks with high quality and more reliable.
10)competive price, cost-effective.
11)quick and efficient spare parts supply bring you more convenient.
12)fast delivery time, we can arange production according to your needs exactly and quickly.

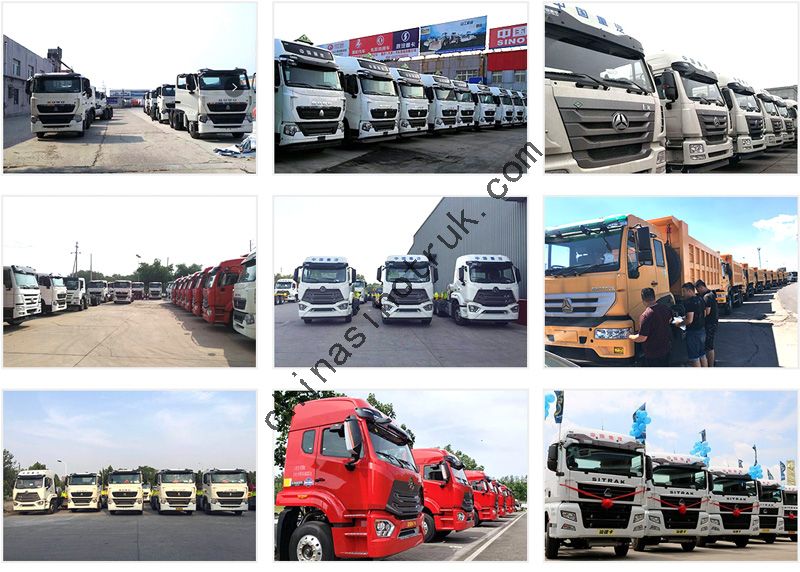

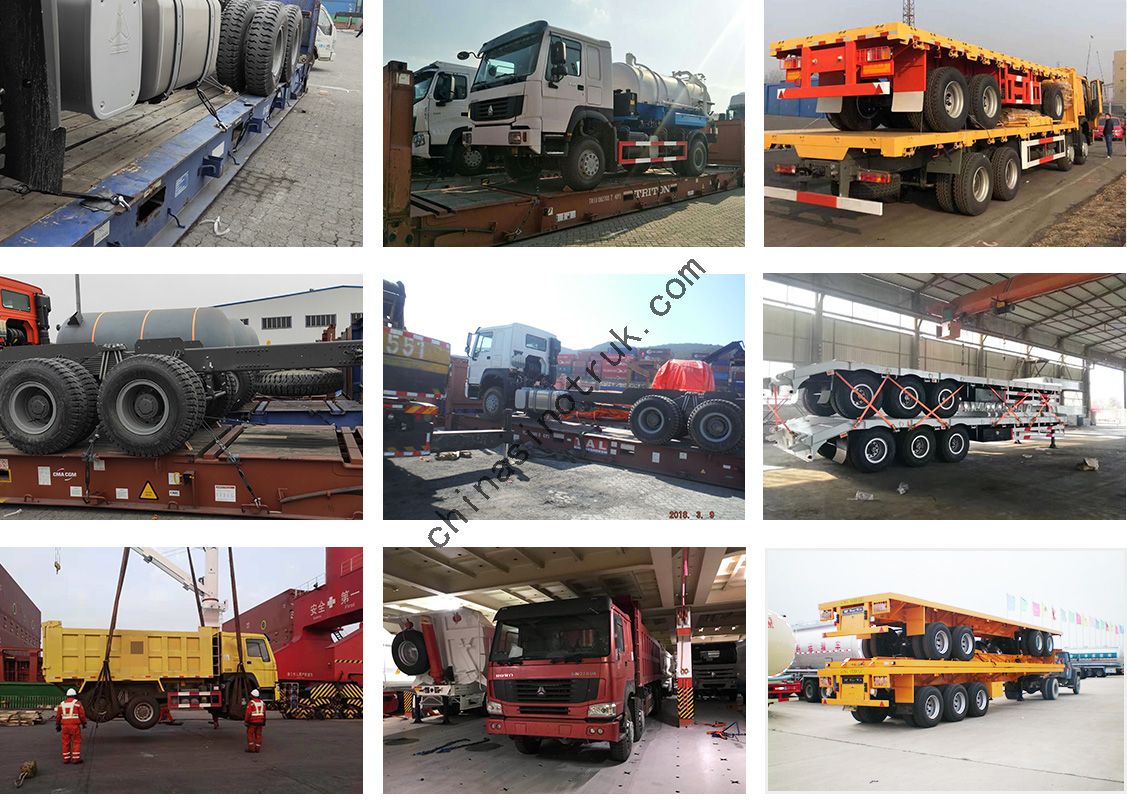

Batch export of vehicles
