HOWO 4X2 Dump Truck-2
Request a Quote
Product description
Engine
Chassis model
Mixing capacity

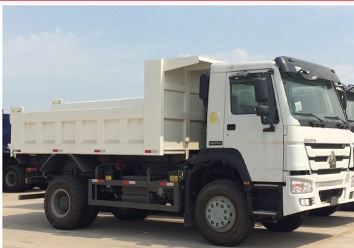

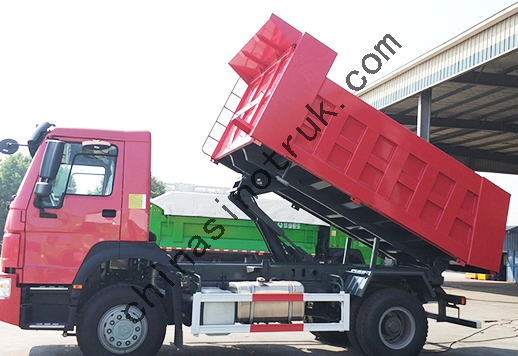

SINOTRUK HOWO Light Duty Dump truck
Vehicle Overview
ModelZZ1047G3414
Cabin1880 half row& one sleeper with A/C without ABS
Full electric centre control lock and power window
Drive model:4 x 2 RHD/LHD
Engine:YN4102QBZL/YUNNEI Brand/116 hp/Euro 3
GearboxWLY6T46; 6 forward&1 reverse+PTO
Front/Rear overhang:1160/1475 mm
Approach/Departure angle:20/18
Front axle: 2.4 T(drum brake)
Driving axle: 4.2 T(6.5 ratio) w/air break
Frame11/9+7CH
7.00R16radial tire w/one spare tire
Wheelbase:3360 mm
Full covered mud-guard
120 L oil tank
Tipper dimension:3,600 x 2,000 x 700 mm/Volume:5 cbm
Bottom/Side Thickness:4 mm/3 mm
T type Dual 110mm hydraulic lifting
