Vehicle type

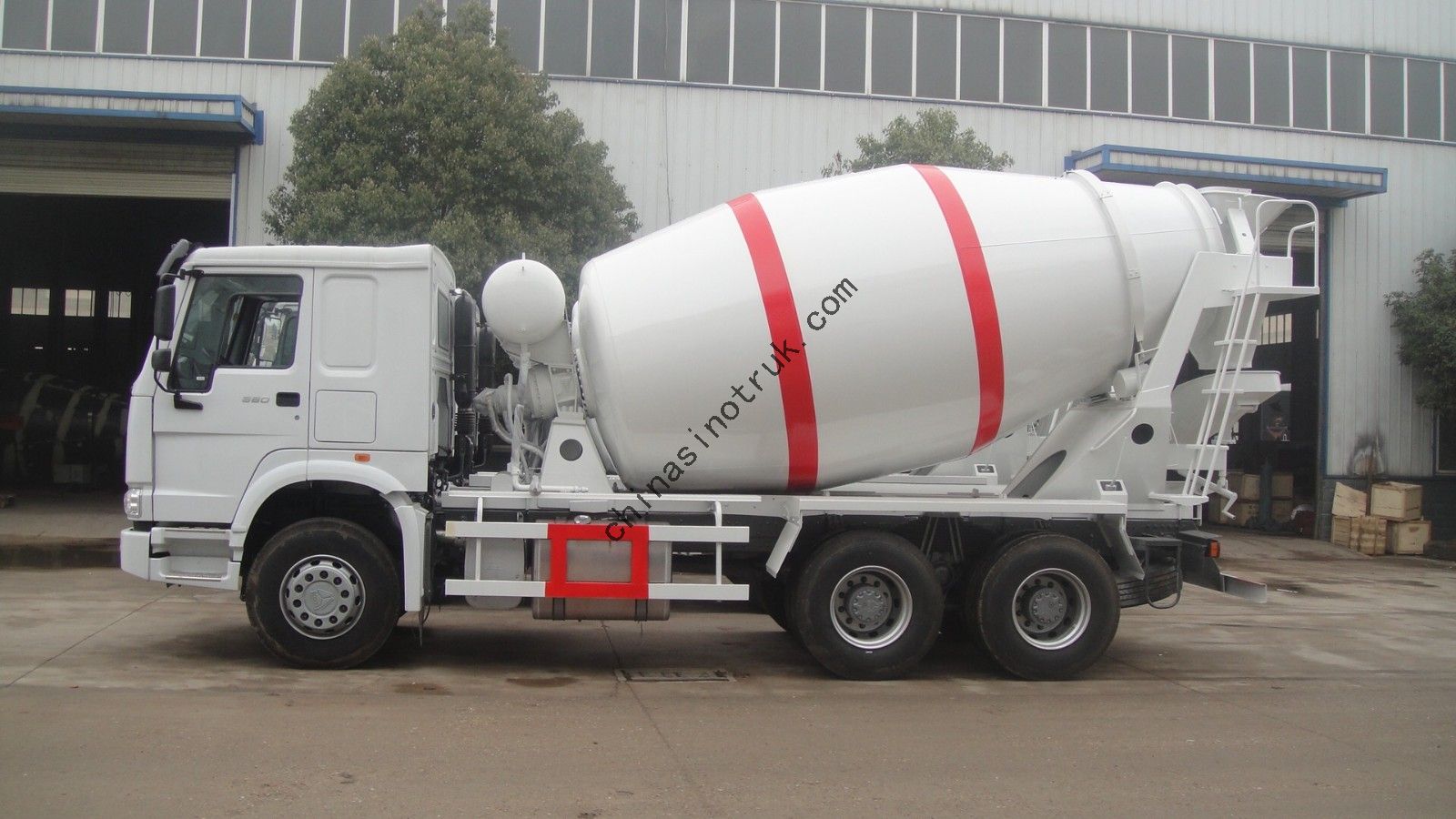

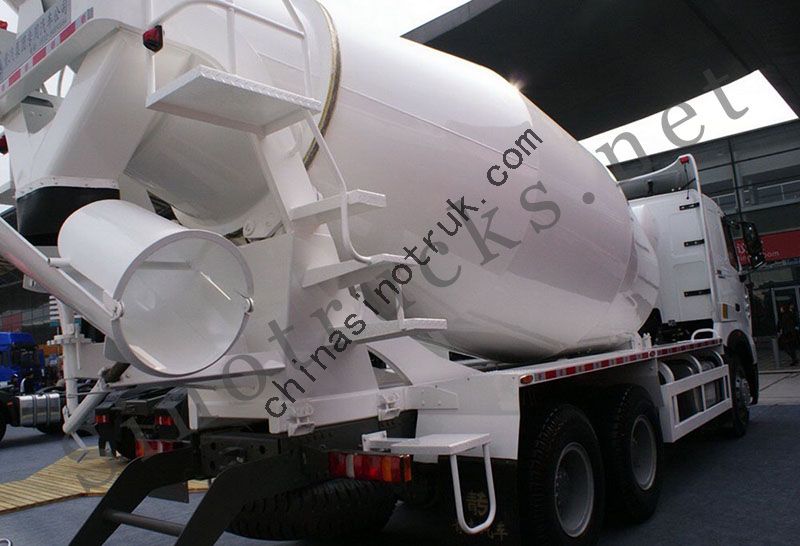

Concrete mixer truck (cement mixer)

Manufacturer

Sinotruk Hubei Huawin Special Vehicle Co., Ltd.
A subsidiary of CNHTC - China National Heavy Duty Truck Group Corporation (Sinotruk).

Country

China

Manufacturer's location

Suizhou, Hubei Province, China.

Engine

Model

WD615.69

WD615.47

Horsepower

336hp

371hp

Maximum output

247/2200 Kw/r/min

273/2200 Kw/r/min

Maximum torque

1350/1300-1600 N.m/r/min

1500/1100-1600

N.m/r/min

Type

6-cylinder in line, 4-stroke,

water-cooled, turbo-charged & inter-cooled, direct injection

Bore x Stroke

126��130mm

Environmental

standards

Euro 2

Cab

SINOTRUK HW76 Lengthen cab,

single bunk, adjustable steering wheel,

safety belts,air conditioner

Clutch

SINOTRUK ��430 diaphragm-spring clutch,

Hydraulically operating with air assistance

Transmission

SINOTRUK HW19710 transmission ,10 forward and 2 reverse
Ratio: 14.28 10.62 7.87 5.88 4.38 3.27 2.43 1.80 1.34 1.00 13.91(R1) 3.18(R2)

Front Axle

SINOTRUK HF9 Front Axle,

New 9-ton front axles of equipped with drum brakes

Steering

German ZF8098 Steering Gear Box,

Hydraulic steering with power assistance, Ratio:22.2-26.2

Rear Axles

HC16 Heavy reduction drive axle,

STR hub-reduction with differential locks between wheels and axles, enforced STR axle,

Ratio:4.8 or 5.73

Brake System

Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake

Tyres

Rims:8.5-20,10 hole-steel;

Tyres:12R22.5 tubeless tyre with 1 Spare tire.

Optional:12.00R20 radial tyre

Electrics

Operating voltage:24V, negative grounded
Starter:24V,7.5 Kw
Alternator:3-phase,28V,1500 W
Batteries:2��12 V,165 Ah
horn, headlamps, fog lights, brake lights, indicators and reverse light

Oil Tank

Square type-300L Aluminum alloy fuel tank

Mixer tank Specifications

Mixing capacity

10 cubic meters

Thickness

4-6mm

Reduction gear

Italian Bonfiglioli

Hydraulic pump

American Eaton

Motor

American Eaton

Feeding speed

��4m³/min

Discharge speed

��3m³/min

Discharge residual rate

��0.8%

Weights &Overall Dimensions

Curb weight

13200

Gross vehicle weight (kg)

25000

Axle load distribution (kg)

7000/18000? (tandem axle)

Overall length (mm)

9240

Overall width (mm)

2496

Overall height (mm)

3980

Wheel Base and Track

Wheelbase (mm)

3825+1350, 3800+1400

Front track (mm)

2022, 2041

Rear track (mm)

1830/1830

Front and Rear Overhang

Front overhang (mm)

1550

Rear overhang (mm)

2050

Angle of Approach and Departure

Angle of approach (deg.)

16

Angle of departure (deg.)

15

Tires and Wheels

Number of axles

3

Number of tires

10

Tires dimension

11R22.5, 12R22.5, 10.00R20, 11.00R20

Leaf springs

9 / 12
