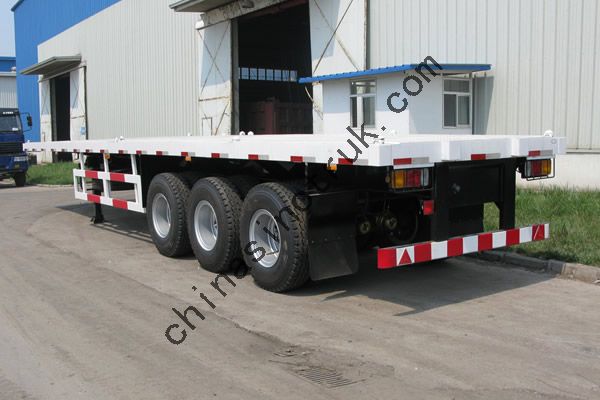

Container Carrying Flatbed Semi Trailer
Overview
| Quick Details | |||||
| Use: | Other Trailers | OEM No.: | Requirement | Max Payload: | 40T |
| Size: | 12500*2500*1550mm | Place of Origin: | Hubei, China (Mainland) | Brand Name: | SINOTRUK Huawin |
| Model Number: | HW | Loading capacity: | 40ton | Axle: | 13 Tons Fuwa / BPW |
| Axle number: | 3 | Suspension: | Air Bag/Mechanical Suspension | Material: | Steel Q345 |
| Twist lock: | 12 units | King pin: | JOST #90 or #50 | Support leg: | JOST C200 |
| Tire: | 12R22.5 | Color: | Customer Request | ||
Supply AbilitySupply Ability: 300 Unit/Units per Month
Packaging & Delivery
Packaging Details: Nude or Waxing in Roro or bulk ship, or by 40GP, 40HQ,40FR and so on
Port: China main port
Lead Time:25 working days after received your advance payment
40 Feet Container Carrying Flatbed Semi TrailerFlat-bed Semi Trailer Truck 3 Axles 30-60Tons for Loading ContainerOur company semi trailer truck series,is applied to the transportation of all kinds of mechanical equipment, big size articles,road construction equipment ,big size tank body power station equipment and all kinds of steels .widely using ,high efficiency .whole vehicle adopts advanced computer aided design for optimization design ,flexible and various ,to design carrying flat according to the requirements of customers.to meet various of special
goods transportation needs.
Specification
SPECIFICATION | |

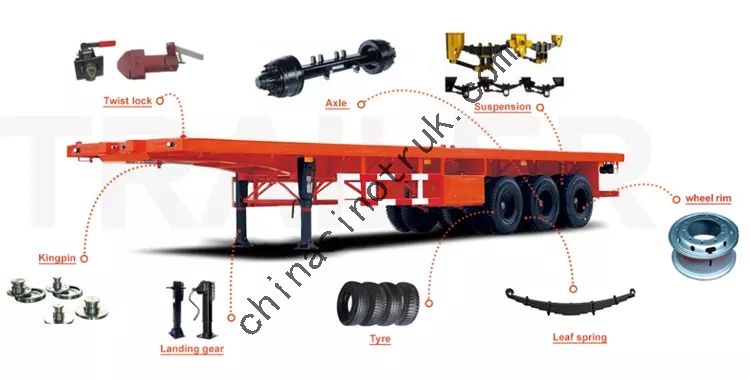

Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,height 500mm; Bottom Flange 16mm,width 140mm. |
Axle | 3 X 13000KGS axles of Germany design |
Suspension | Germany design heavy duty mechanical suspension |
Leaf Spring | Leaf spring |
King Pin | JOST 2.0 Bolt-in King Pin |
Landing Gear | JOST Two-speed, manual operating, heavy duty landing gear |
Wheel Rim | 9.00-22.5 steel wheel rim, 12pcs |
Tire | 12R22.5 Tubeless Tire, 12pcs |
Spare Tire | One set of spare tire including a carrier |
Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Accessories | One standard tool box |
Optional The axle can be FUWA,BPW,L1 and other brand. Front axle lifting is optional Air bag suspension Aluminium ally rim Tyres have 11R22.5;11.00R20;12.00R20;315/80R22.5;385/65R22.5
Applications

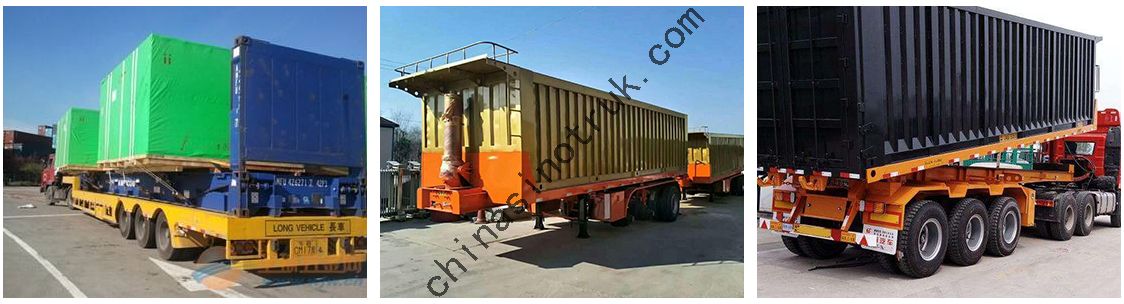

Flat bed semi trailer for a variety of Container 20ft and 40ft
Competitive Advantage:
Batch export of vehicles
Ocean Shipping
