Skeleton Semi Trailer

Our company produces Skeleton semi-trailer divided into flat, concave beam and tire exposed structure, beam adopts flat type or goose neck. The frame is ladder type, the beam cross-section is I-shaped, has high anti breaking strength and bearing capacity.
Request a Quote
没有此类产品
Product description
Engine
Chassis model
Mixing capacity

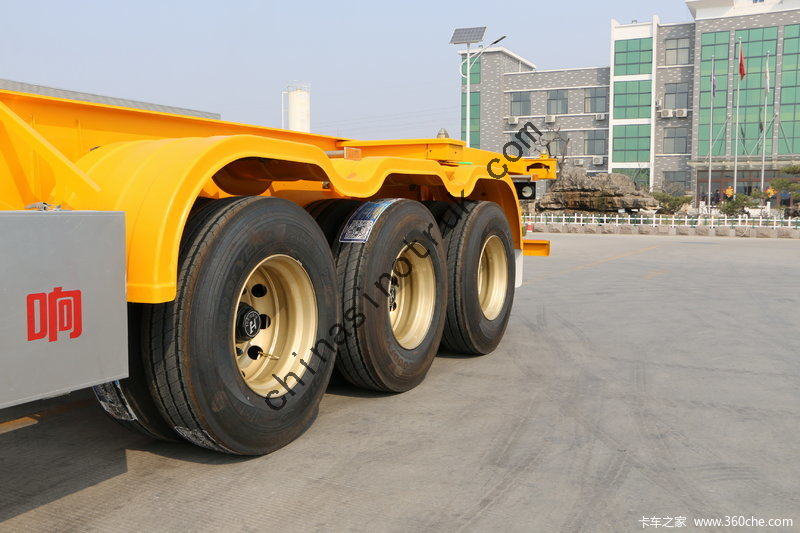

40 Feet Container Carrying  Skeleton Semi-Trailer

Applications:

Skeleton semi-trailer for a variety of Container 20ft and 40ft

Specification:

Dimensions
Tare Weight5000kg
Overall Length12400mm
Deck Length8000mm
Overall Height1664mm
Overall Width2480mm
Payload40000kg
Specification
ChassisHeavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm; Bottom Flange 16mm,width 140mm.
Axle3 axles/ Loading capacity each axle: 13T

Brand Name: FUWA
SuspensionMechanical suspension or air suspension optional upon choice.
Leaf Spring10-piece leaf spring.
Floor3mm checker plate.
RampMechanical spring ramp or hydraulic lifting ramp-Optional upon requirement.
King PinJOST brand 2 Bolt-in King Pin.
Landing GearJOST brand Two-speed, manual operating, heavy duty landing gear.
Wheel Rim8.25-22.5
Tyre11R22.5
Spare TireOne set of spare tire including a carrier.
Braking SystemWABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
PaintingComplete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint.
AccessoriesOne standard tool box.






Competitive Advantage:

1) Our company produces Skeleton semi-trailer divided into flat, concave beam and tire exposed structure, beam adopts flat type or goose neck. The frame is ladder type, the beam cross-section is I-shaped, has high anti breaking strength and bearing capacity.

2) The main plane of the frame is low, which ensures the smooth transportation, and is suitable for carrying all kinds of engineering machinery, large equipment and steel.

3) Using three axis balance, double axis balance or rigid suspension, the mass balance block is arranged between the front and rear leaf springs.

4) the key parts adopt the world's top technology products

5) based on strong technical support and top level technology make the trucks with high quality and more reliable

6) competitive price, cost-effective

7) quick and efficient spare parts supply bring you more convenient

8) fast delivery time, we can arrange production according to your needs exactly and Quickly

9) professional import and export dealing procedure, make customs clearance more high efficiency

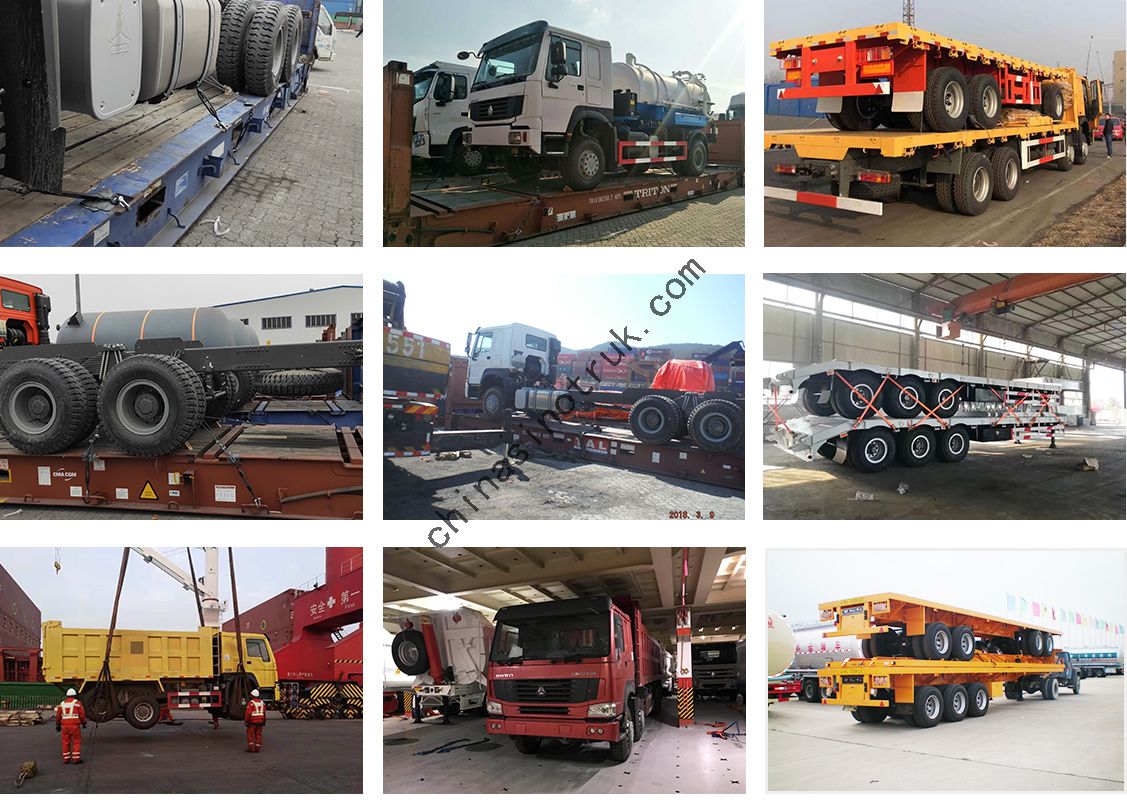

Ocean Shipping
