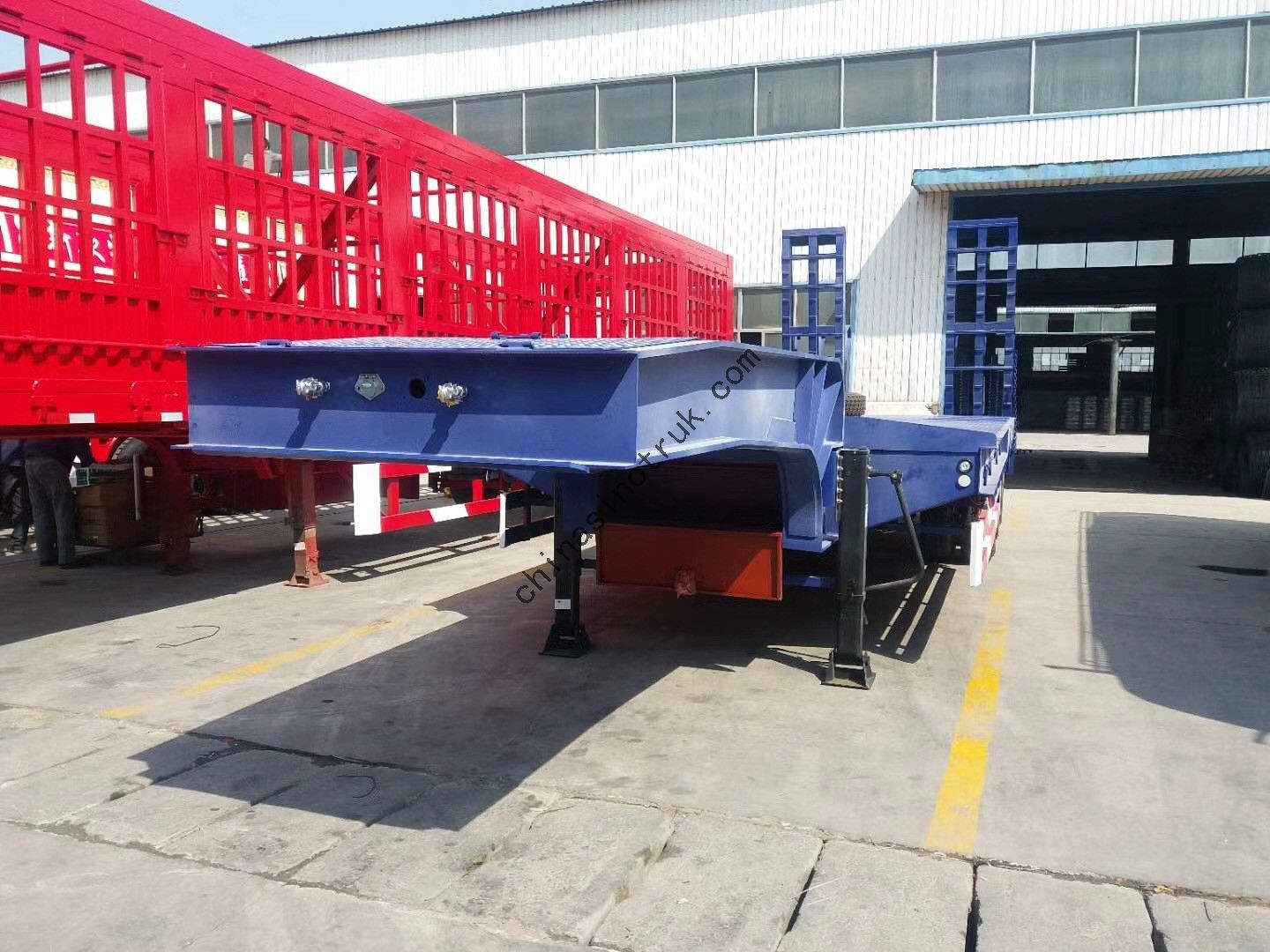

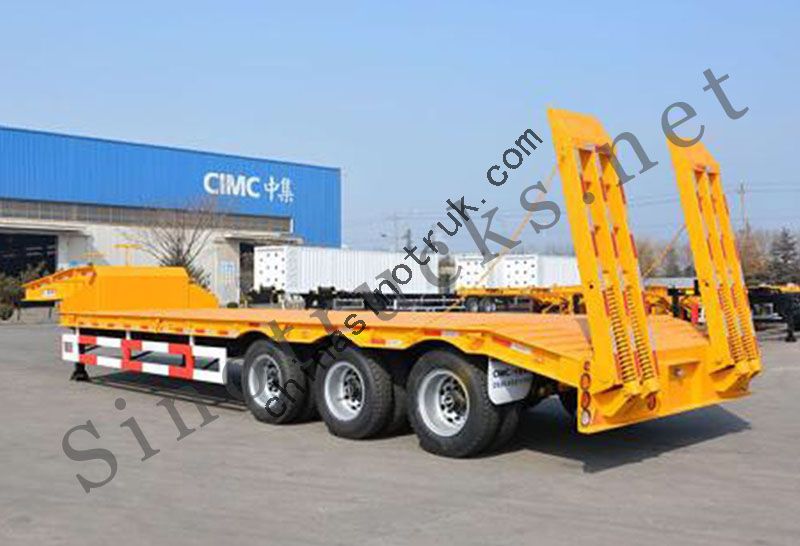

3 Axle Low Bed Semi Trailer

Lowbed semi-trailers can be produced between 2 axles to 8 axles and loading capacity starting from 20 Tons to 120 Tons , rear or front loading Lowbed semi-trailers and platform as customer demand with different kind of specification according to demand. S
Request a Quote
没有此类产品
Product description
Engine
Chassis model
Mixing capacity

Supply Ability

Supply Ability: 300 Unit/Units per Month


Packaging & Delivery
Packaging Details: naked packing,shipment by roro or bulk vessel
Port: Tianjin, Shanghai, Qingdao or as your needs
Lead Time:45 days after 30% deposit



Specification

Item

Dimensions

Overall Length

11000~16000mm

Deck Length

8000mm

Overall Height

1664mm

Overall Width

2500~3500mm

Payload

60000kg

Chassis

Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 20mm,width 140mm; Middle Flange 11.5mm; Bottom Flange 20mm,width 140mm.

Axle

3 axles/ Loading capacity each axle: 13T/16T/20T

Brand Name: FUWA/HUAJIN/BPW/L1

Suspension

Mechanical suspension or air suspension optional upon choice.

Leaf Spring

10-piece leaf spring.

Floor

3~8mm checker plate.

Ramp

Mechanical spring ramp or hydraulic lifting ramp-Optional upon requirement.

King Pin

JOST brand 2 Bolt-in King Pin.

Landing Gear

JOST brand Two-speed, manual operating, heavy duty landing gear.

Wheel Rim

6.5-20 / 7.5-20 / 8.00-20 / 8.5-20 or etc

Tyre

8.25R20 / 10.00R20 / 11.00R20 / 11R22.5 / 235/70 R17.5 / 315/80 R22.5 or etc

Spare Tire

One set of spare tire including a carrier.

Braking System

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint.

Accessories

One standard tool box.

Side bracket is an option(for increase overall width), removable and swinging

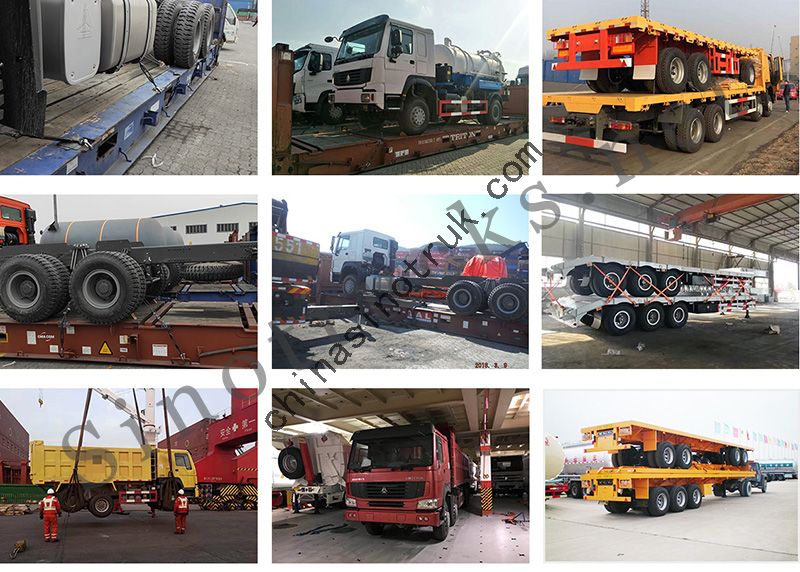

Ocean Shipping

3 Axle Low Bed Semi Trailer
