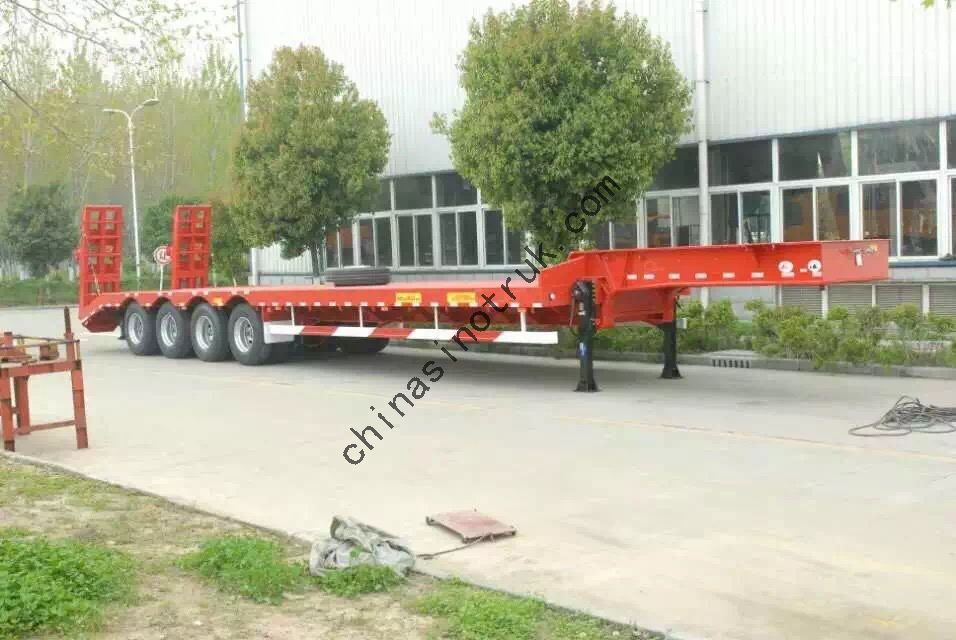

4 Axle Low Bed Semi Trailer
Supply Ability
Supply Ability: 300 Unit/Units per Month
Packaging & Delivery
Packaging Details: naked packing,shipment by roro or bulk vessel
Port: Tianjin, Shanghai, Qingdao or as your needs
Lead Time:45 days after 30% deposit
Specification
Item | Dimensions |
Overall Length | 11000~16000mm |
Deck Length | 8000mm |
Overall Height | 1664mm |
Overall Width | 2500~3500mm |
Payload | 60000kg |
Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 20mm,width 140mm; Middle Flange 11.5mm; Bottom Flange 20mm,width 140mm. |
Axle | 3 axles/ Loading capacity each axle: 13T/16T/20T |
Brand Name: FUWA/HUAJIN/BPW/L1 | |
Suspension | Mechanical suspension or air suspension optional upon choice. |
Leaf Spring | 10-piece leaf spring. |
Floor | 3~8mm checker plate. |
Ramp | Mechanical spring ramp or hydraulic lifting ramp-Optional upon requirement. |
King Pin | JOST brand 2 Bolt-in King Pin. |
Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear. |
Wheel Rim | 6.5-20 / 7.5-20 / 8.00-20 / 8.5-20 or etc |
Tyre | 8.25R20 / 10.00R20 / 11.00R20 / 11R22.5 / 235/70 R17.5 / 315/80 R22.5 or etc |
Spare Tire | One set of spare tire including a carrier. |
Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint. |

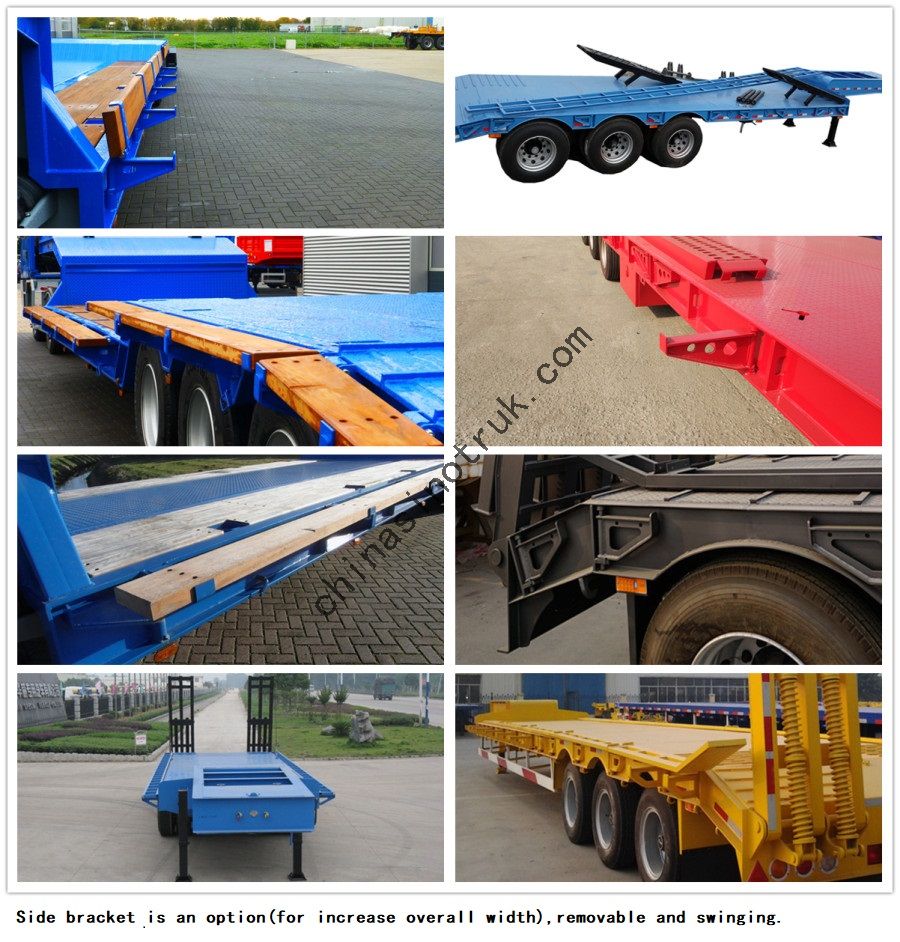

Accessories | One standard tool box. Side bracket is an option(for increase overall width), removable and swinging |

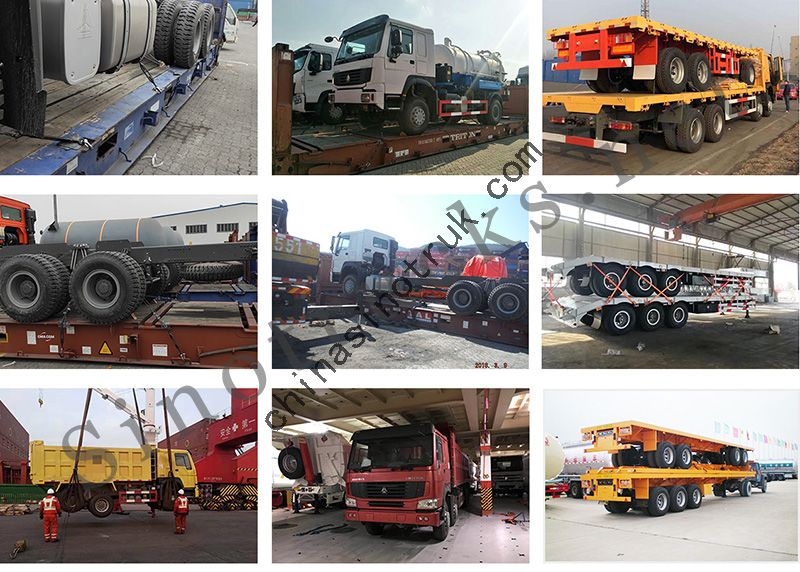

Ocean Shipping
