Side Tipper Semi Trailer
Overview
| Quick Details | |||||
| Use: | Other Trailers | OEM No.: | Requirement | Max Payload: | 40T |
| Size: | 9000*2500*3930mm | Place of Origin: | Hubei, China (Mainland) | Brand Name: | HW |
| Model Number: | Semi-Trailer | Tare weight: | 8000 | Payload: | 40000kgs |
| loading capacity: | 24 cbm | Chassis: | heavy duty and extra durability I beam | Axle: | FUWA K-Hitch 11.5T/13T |
| Suspension: | Mechanical Suspension | Leaf spring: | Leaf spring | Cylinder: | HYVA brand |
| Kingpin: | JOST bolt in king pin | Landing Gear: | JOST C200 | ||
Supply AbilitySupply Ability: 300 Unit/Units per Month
Packaging & Delivery
Packaging Details: We transport the vehicle in nude ,or by roro vessel,or in wax by bulk vessel or by container if possible. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
Port: Tianjin, Shanghai, Qingdao or as your needs
Lead Time:40 days
The best quality heavy duty tri axles side tipperSafe & Easier DischargeSide tippers are often utilised for carrying a variety of products from bulk commodity to raw material and mining products, characterised by side discharge capabilities.Side Tipper Range General Purpose: for cartage of sand, gravel and other aggregate materials. Mining: heavy duty construction for cartage of raw mining products on or off road.
Competitive AdvantageFrame body Q345B high strength structure steel, automatic submerged arc welding throughout beams, and other cross-section main stringers structure for optimum carrying effect.Well-known brand axles, suspension systems, high performance, and reliable to use, to ensure the good performance of the vehicle.

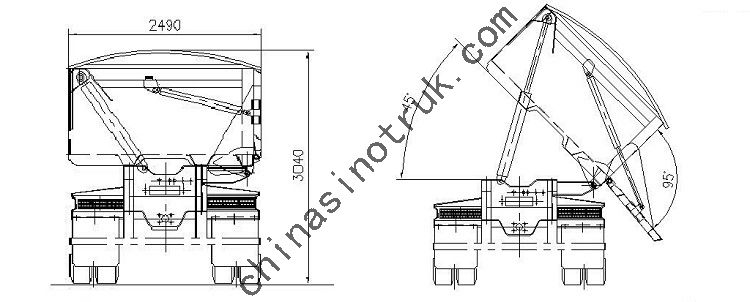

Specification
DIMENSIONS | |
Tare Weight | Approx.8500kgs |
Payload | 30000kgs |
Overall Length | 10100mm |
Overall Width | 2490mm |
Overall Height | 3050mm |
DUMPER BODY | |
Volume | Appox 24 m3 |
Bin and door | 5mm thickness by Hardox 450 or NM450 |
SPECIFICATION | |
Chassis | Heavy duty and extra durability designed Fabricated I-Beam - 345 MPa welded by automatic Submerged-Arc processes. Top Flange 16mm,width 140mm; Double Middle Flange 6mm and 8mm ; Bottom Flange 16mm,width 140mm. |
Axle | 3 axles |
K-Hitch brand ADR approved 11.5 T | |
Cylinder | two set of hydraulic tip cylinder ? 150mm, door cylinder ? 80mm |
Single Stage, Double Acting, Externally Mounted to each end | |
Hydraulic system | One (1) Air-Operated Directional Control Valve with manual over ride. |
Two (2) 1" Hydraulic hoses fitted to front of subframe with 1" BSP compatible couplings | |
Suspension | K-Hitch brand mechanical with 8-piece leaf spring. Air bag is optional |
King Pin | JOST brand 2 or 3.5'' Two bosses with 90mm Kingpin to suit Tandem or Tri Axle Dolly |
Landing Gear | Jost brand Two Speed, manually operated, with Rubber Flap Guard to front |
Wheel Rim | 8.25R22.5 10 stud steel rim 13 pieces PCD 285.75; alloy rim is optional |
Tyre | 11R22.5 tubeless tire, 13 pieces |
Spare Tire Rack | Underslung accommodates 2 spares, Dual Swinging type |
Braking System | 3 sets of T30/30 Spring brake chamber; 40L air tanks with two outlets to suit OZ standard, air control valve and air tube is not included |
Mud guard | Spring Tension Rubber over Tri Group |
Finish | Sandblasted to grade 2.5; 2k Primer and Painted in 2-Pack to required color |
Light & wire | Orion brand ADR LED Combination Rear Lights, and LED Side lights. |
with ADR standard wire and 7-pin socket | |
Others | Road train Spec. |
OptionalThere are several choices in the construction of side tippers, depending on the use of the side tipper and the clients requirements. Clients can choose between steel, stainless steel, high strength steel and aluminium construction.HUAWIN provides top of the range suspensions, with the option of mechanical or airbag (road friendly).Where applicable, General Transport Equipment offers Electronic Brake Stability (EBS) as the highest standard available.Side tipper A trailer for Road train and dolly(2 axles or 3 axles) are available.Tarpaulin system is available, manual or
electronic control

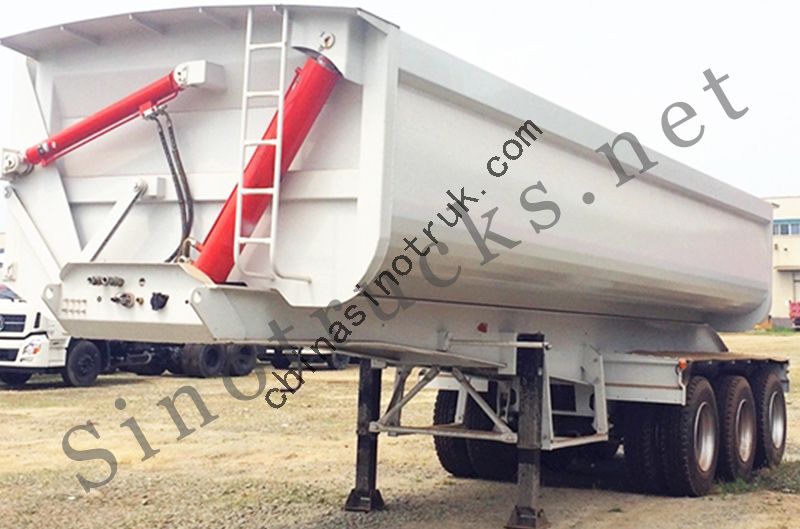

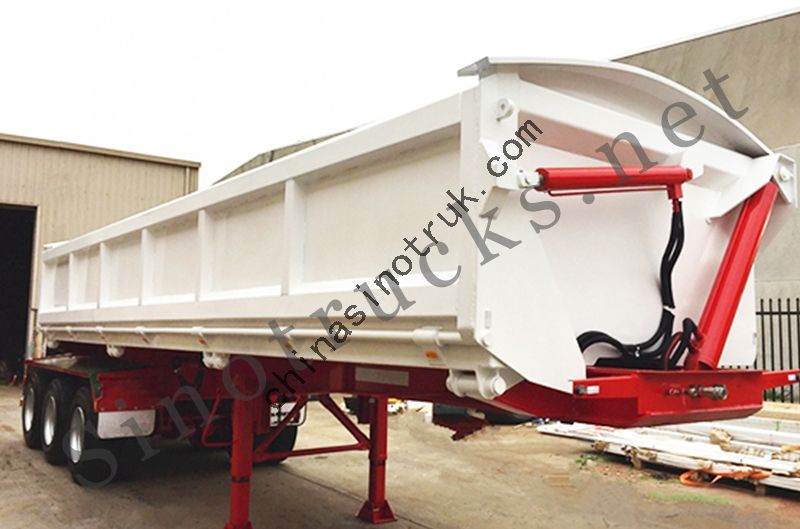

Other dump trailer products
Applications
Competitive Advantage:
1)severall kinds of cargo body structure , make it light weight , high rigidity , high loading capacity.2)adopt the high strength steel, make it has a long service life.3)The imported hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.4)excellant apperance of cabin, safety, reliable.5)lower fuel consumption.6) strong enough engine.7)with all kinds of truck model, which can fulfil your requirements.8)the key parts adopt the world's top technology products.9)based on strong technical support and top level technology make the trucks with high quality and more reliable.10)competive price, cost-effective.11)quick and efficient spare parts supply bring you more convenient.12)fast delivery time, we can arange production according to your needs exactly and quickly.

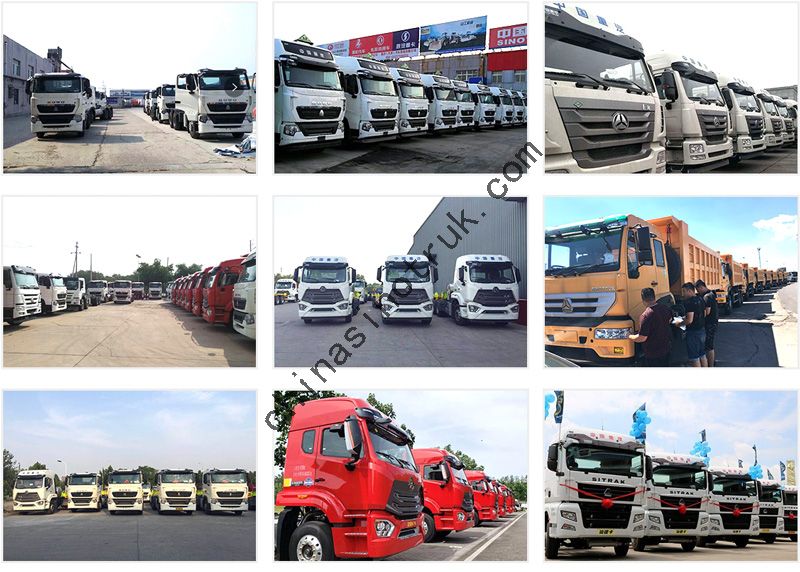

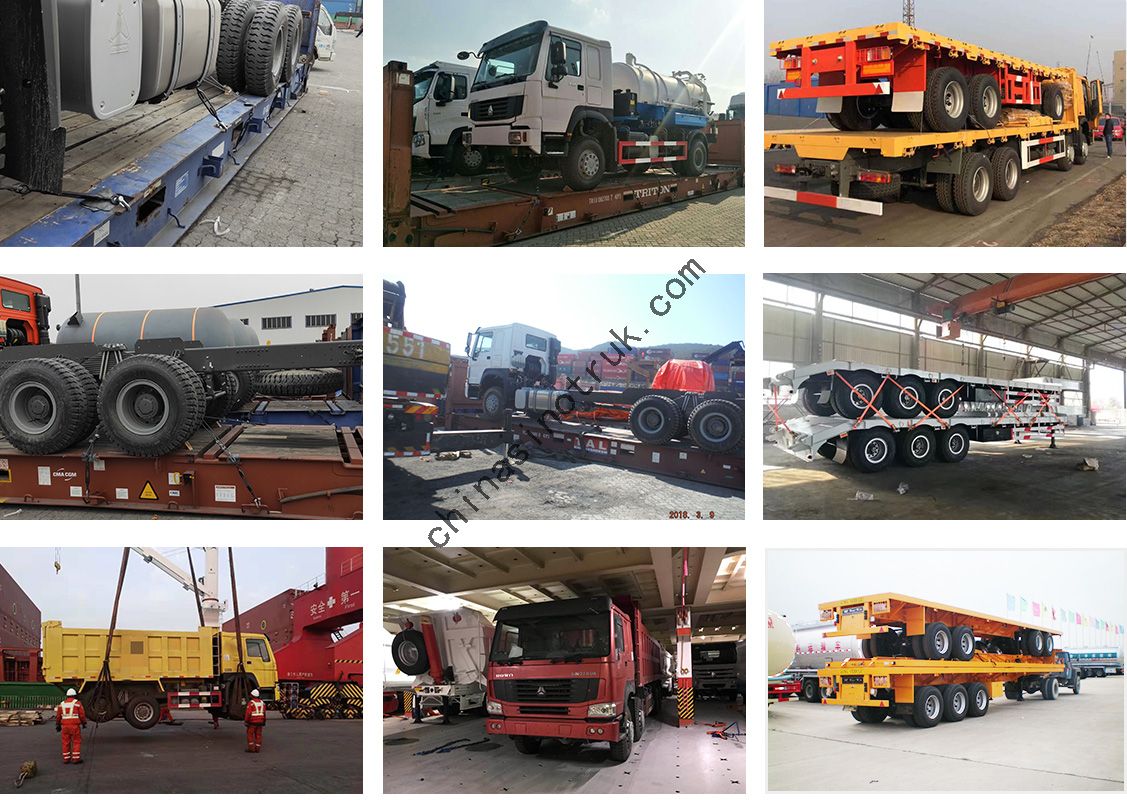

Batch export of vehicles
Ocean Shipping
