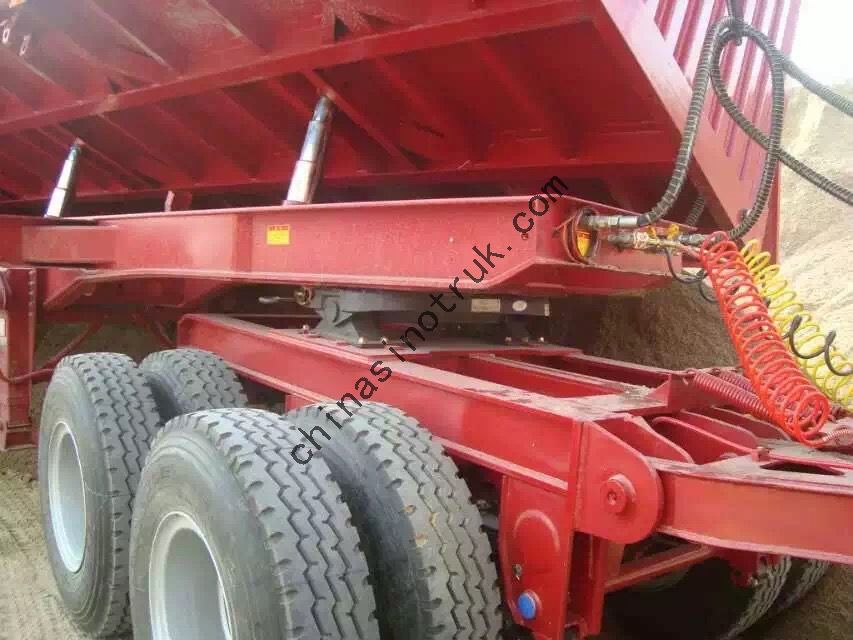

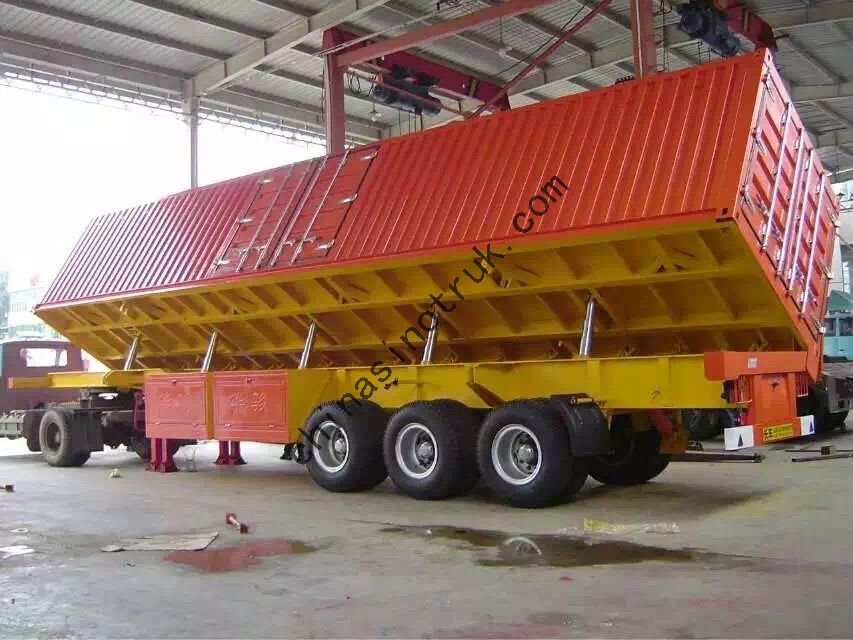

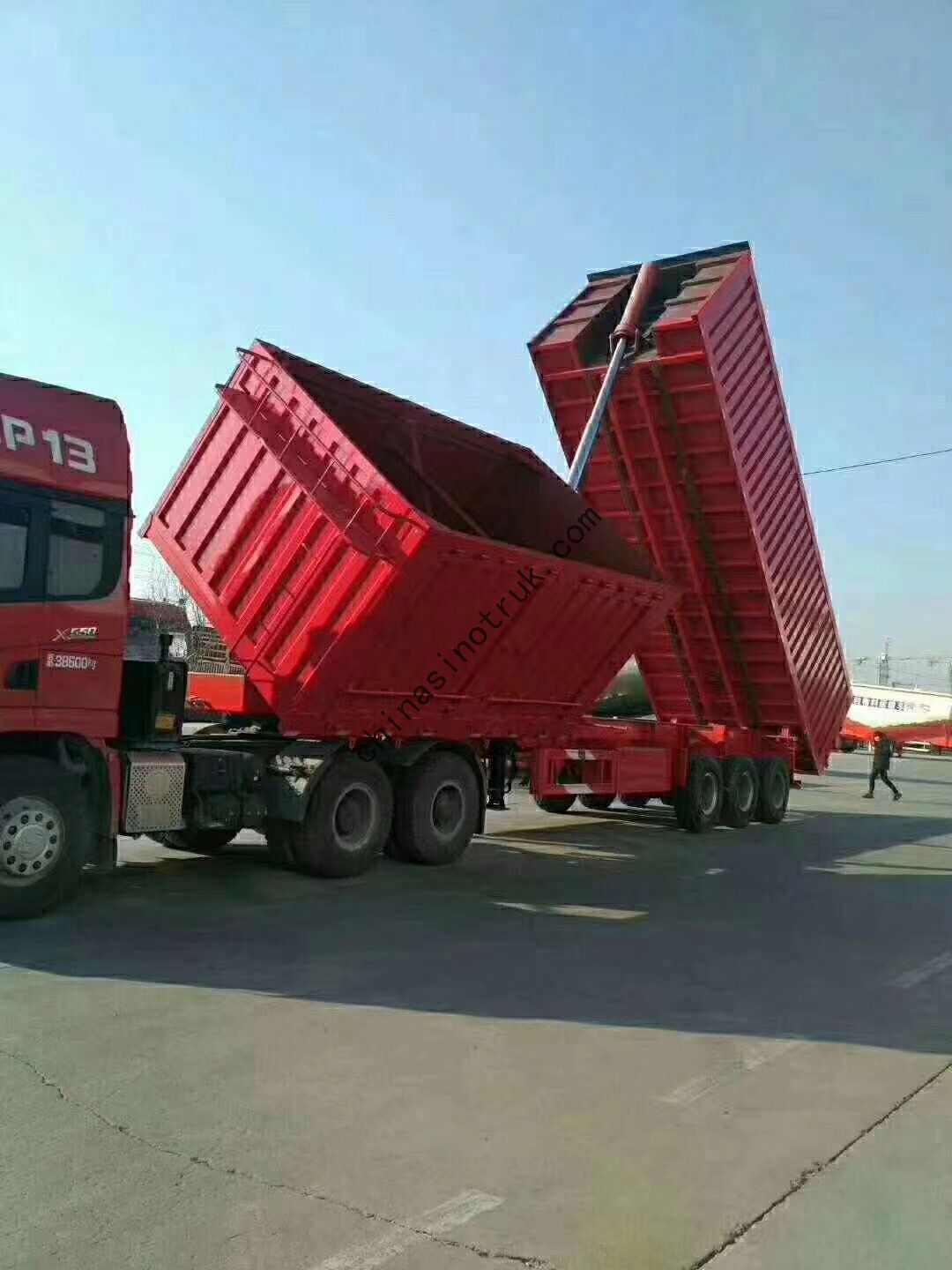

Side Tipper Semi Trailer --

The Dumper can be classified by lfting way, one is rear dump, another is side dump. Choosing 2-axles or 3-axles according to the loading request of customer. Dump body material: Q235, Q345, Q610 or wear resisting steel for the dump body. Type of dump
Request a Quote
没有此类产品
Product description
Engine
Chassis model
Mixing capacity

Overview




Specification:



Weight:

Tare Weight

8000kg-14000kg

Loading Capacity

50T-100T

Axle Weight Load

13T-16T

Specification:

Axle number

3/4

Axle Brand

Fuwa/BPW/Optional upon choice

Suspension

Common mechanical

King Pin

3.5" traction pin

Dimensions (LxWxH)

12400~180002500~32001500~2000mm

Thickness of box

3~8mm

Support legs

28T

Wheel Rim

8.5-20,9.0-20,8.28-22.5,9.0-22.5 steel wheel rim /

optional upon choice

Wheelbase

7180/6680/6260+1310+1310mm

Steel Spring

10-13 pieces per axle

Landing Gear

Manual operating, Heavy duty landing gear (Brand Optional upon choice)

Floor

5-10 Diamond steel plate

Accessories

1 Set standard tool box

Light

Tail lamp with turn signal, brake light & reflector, side lamp etc.

Painting

1coat of anticorrosive prime, twice coats of final paint

Tire:

Tire spec.

12R22.5 tire/11.00R20/12.00R20

Number of Tire

12 or 16 pieces

Spare Tire Carriers

2 pieces

Frame: (specs. and materials)

Main beam

The height of the beam is500-550mm;

Upper plate:14-18mm;Down plate is 16-20mm;Middle plate is 8-12mm.
